Decision Trees Lab 1

Author

Adapted by EVL, FRC and ASP

Published

March 24, 2025

Classification Trees: Predicting car sales

Introduction

This example has been adapted from the book “Introduction to Statistical Learning with R”, lab 8.3.

The authors have decided to use the R tree package, which is not the most powerful R package for trees, but offers a good compromise between power and flexibility.

The lab relies on the Carseats dataset, a simulated dataset, that is included with the book’s package, containing several variables about sales of child car seats at different stores.

require(ISLR2)
data("Carseats")
# help("Carseats")

A data frame with 400 observations on the following 11 variables.

  • Sales: Unit sales (in thousands) at each location
  • CompPrice: Price charged by competitor at each location
  • Income: Community income level (in thousands of dollars)
  • Advertising: Local advertising budget for company at each location (in thousands of dollars)
  • Population: Population size in region (in thousands)
  • Price: Price company charges for car seats at each site
  • ShelveLoc: A factor with levels Bad, Good and Medium indicating the quality of the shelving location for the car seats at each site
  • Age: Average age of the local population
  • Education: Education level at each location
  • Urban: A factor with levels No and Yes to indicate whether the store is in an urban or rural location
  • US: A factor with levels No and Yes to indicate whether the store is in the US or not

The first part of the lab will aim at predicting the variable sales.

In order to apply classification trees first, we start by categorizing the salesvariable. This is not usually seen as a good strategy, so take it only for didactical purpose.

Data description

We use a generic name for the dataset, in order to facilitate code reuse.

myDescription <- "The data are a simulated data set containing sales of child car seats at different stores [@james2013introduction]"
mydataset <- Carseats
n <- nrow(mydataset)
p <- ncol(mydataset)

There are 400 rows and 11 columns.

The variable Sales is categorized creating a new variable, High, which takes on a value of Yes if the Sales variable exceeds 8, and a value of No otherwise.

# as.factor() changes the type of variable to factor
mydataset$High=as.factor(ifelse(mydataset$Sales<=8,"No","Yes"))

The number of observations for each class is:

kable(table(mydataset$High), caption= "Number of observations for each class", col.names = c('High','Freq'))
Number of observations for each class
High Freq
No 236
Yes 164

The aim is of this study is to predict the categorical values of sales (High) using all variables but Sales.

It is a classification problem and we will build a classification tree model.

Data summarization

This is a short data set summary

summary(mydataset)
     Sales          CompPrice       Income        Advertising
 Min.   : 0.000   Min.   : 77   Min.   : 21.00   Min.   : 0.000
 1st Qu.: 5.390   1st Qu.:115   1st Qu.: 42.75   1st Qu.: 0.000
 Median : 7.490   Median :125   Median : 69.00   Median : 5.000
 Mean   : 7.496   Mean   :125   Mean   : 68.66   Mean   : 6.635
 3rd Qu.: 9.320   3rd Qu.:135   3rd Qu.: 91.00   3rd Qu.:12.000
 Max.   :16.270   Max.   :175   Max.   :120.00   Max.   :29.000
   Population        Price        ShelveLoc        Age          Education
 Min.   : 10.0   Min.   : 24.0   Bad   : 96   Min.   :25.00   Min.   :10.0
 1st Qu.:139.0   1st Qu.:100.0   Good  : 85   1st Qu.:39.75   1st Qu.:12.0
 Median :272.0   Median :117.0   Medium:219   Median :54.50   Median :14.0
 Mean   :264.8   Mean   :115.8                Mean   :53.32   Mean   :13.9
 3rd Qu.:398.5   3rd Qu.:131.0                3rd Qu.:66.00   3rd Qu.:16.0
 Max.   :509.0   Max.   :191.0                Max.   :80.00   Max.   :18.0
 Urban       US       High
 No :118   No :142   No :236
 Yes:282   Yes:258   Yes:164

An improved description:

skimr::skim(mydataset)
Data summary
Name mydataset
Number of rows 400
Number of columns 12
_______________________
Column type frequency:
factor 4
numeric 8
________________________
Group variables None

Variable type: factor

skim_variable n_missing complete_rate ordered n_unique top_counts
ShelveLoc 0 1 FALSE 3 Med: 219, Bad: 96, Goo: 85
Urban 0 1 FALSE 2 Yes: 282, No: 118
US 0 1 FALSE 2 Yes: 258, No: 142
High 0 1 FALSE 2 No: 236, Yes: 164

Variable type: numeric

skim_variable n_missing complete_rate mean sd p0 p25 p50 p75 p100 hist
Sales 0 1 7.50 2.82 0 5.39 7.49 9.32 16.27 ▁▆▇▃▁
CompPrice 0 1 124.97 15.33 77 115.00 125.00 135.00 175.00 ▁▅▇▃▁
Income 0 1 68.66 27.99 21 42.75 69.00 91.00 120.00 ▇▆▇▆▅
Advertising 0 1 6.64 6.65 0 0.00 5.00 12.00 29.00 ▇▃▃▁▁
Population 0 1 264.84 147.38 10 139.00 272.00 398.50 509.00 ▇▇▇▇▇
Price 0 1 115.80 23.68 24 100.00 117.00 131.00 191.00 ▁▂▇▆▁
Age 0 1 53.32 16.20 25 39.75 54.50 66.00 80.00 ▇▆▇▇▇
Education 0 1 13.90 2.62 10 12.00 14.00 16.00 18.00 ▇▇▃▇▇

Preprocess

It is very common that the data need to be preprocessed before training the model*

In this case, there seem to be no missing values, no outliers and most variables are decently symmetrical, so no cleaning or preprocessing are required.

Train/Test partition of data

In order to properly evaluate the performance of a model, we must estimate the error rather than simply computing the training error.

With this aim in mind we proceed as follows:

  1. split the observations into a training set and a test set,
  2. build the model using the training set, and
  3. evaluate its performance on the test data.
set.seed(2)
pt <- 1/2
train <- sample(1:nrow(mydataset),pt*nrow(mydataset))
mydataset.test <- mydataset[-train,]
High.test <-  mydataset[-train,"High"]

The train and tets set have 200 200 observations respectively.

In train data, the number of observations for each class is:

kableExtra::kable(table(mydataset[train,"High"]), caption= "Train data: number of observations for each class", col.names = c('High','Freq'))
Train data: number of observations for each class
High Freq
No 119
Yes 81

Train model

We now use the tree() function to fit a classification tree in order to predict High using all variables but Sales using only de train set.

library(tree)
tree.mydataset=tree(High~.-Sales, mydataset,
                    subset=train,
                    split="deviance")

The summary() function lists the variables that are used as internal nodes in the tree, the number of terminal nodes, and the training error rate

summary(tree.mydataset)

Classification tree:
tree(formula = High ~ . - Sales, data = mydataset, subset = train,
    split = "deviance")
Variables actually used in tree construction:
[1] "Price"       "Population"  "ShelveLoc"   "Age"         "Education"
[6] "CompPrice"   "Advertising" "Income"      "US"
Number of terminal nodes:  21
Residual mean deviance:  0.5543 = 99.22 / 179
Misclassification error rate: 0.115 = 23 / 200
# summary(tree.mydataset2)

For classification trees the deviance of a tree (roughly equivalent to the concept of impurity) is defined as the sum over all terminal leaves of: \[ -2 \sum_m \sum_k n_{mk} log(\hat{p}_{mk}), \]

where \(n_{mk}\) is the number of observations in the mth terminal node that belong to the kth class.

The residual mean deviance reported is simply the deviance divided by \(n - |T_0|\) where \(T_0\) is the number of terminal nodes.

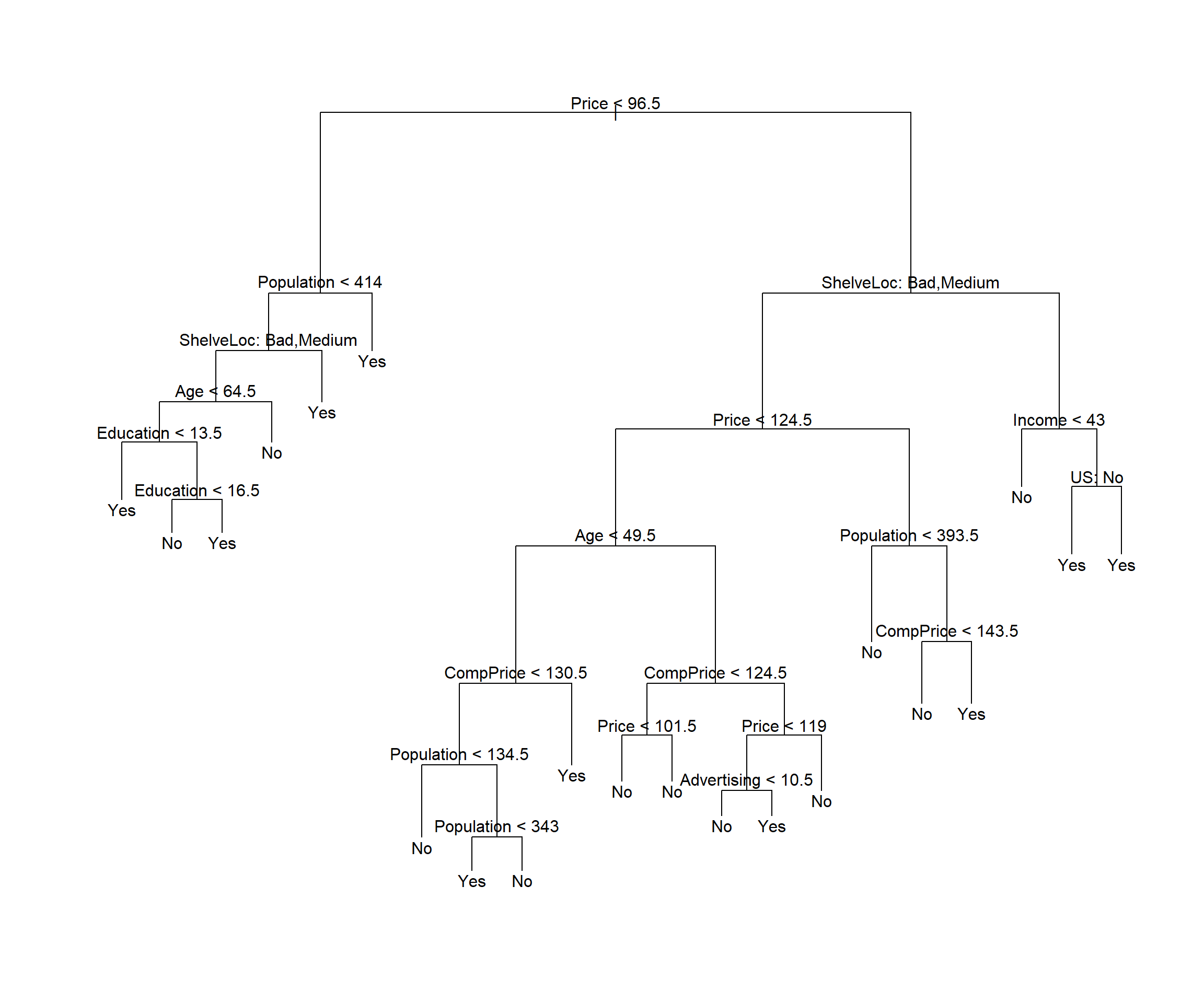

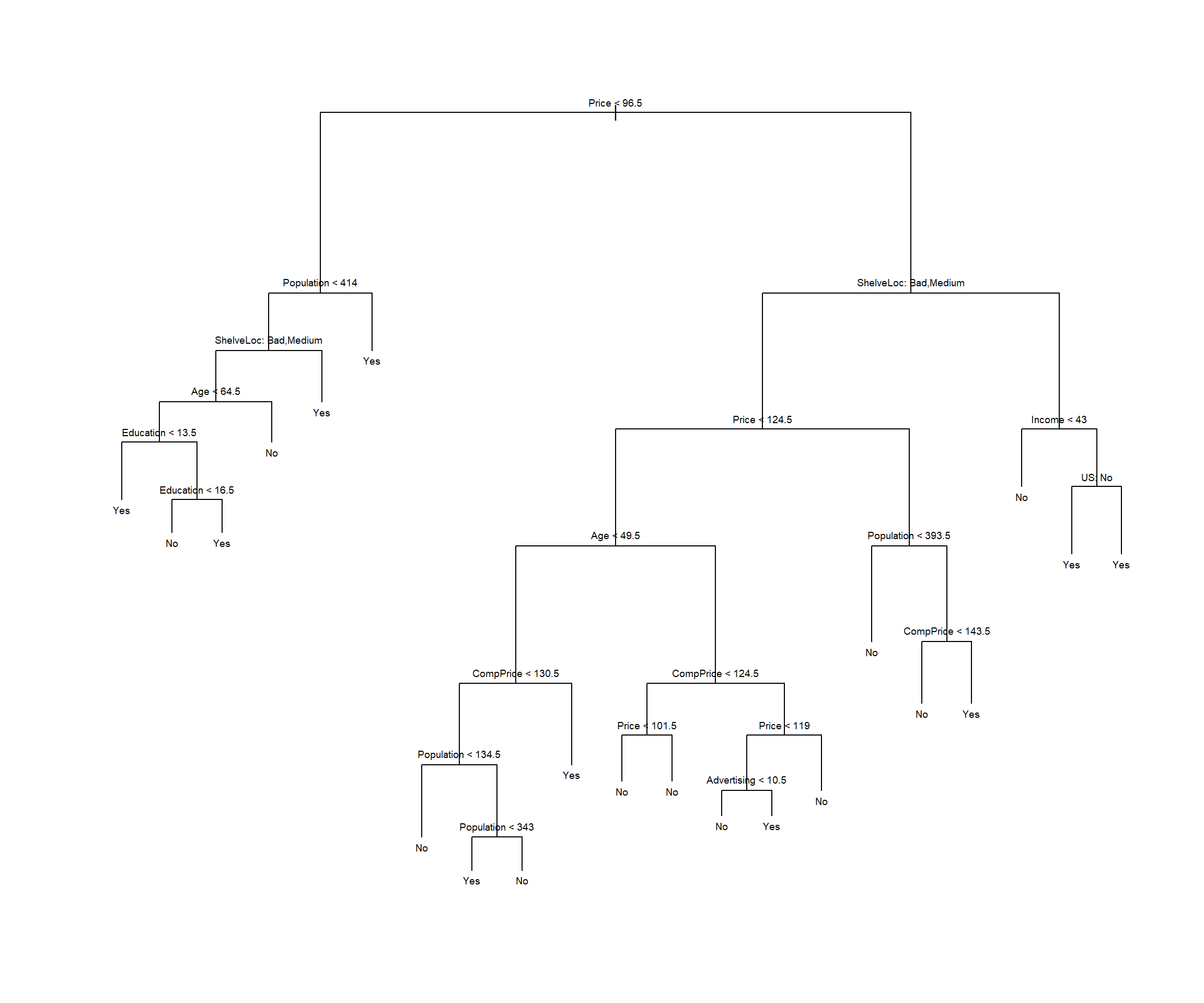

Plot the Tree

The next step is display the tree graphically. We use the plot() function to display the tree structure, and the text()function to display the node labels.

plot(tree.mydataset)
text(tree.mydataset,pretty=0, cex=0.6)

Classification tree

It is also possible to show a R print output corresponding to each branch of the tree.

tree.mydataset
node), split, n, deviance, yval, (yprob)
      * denotes terminal node

  1) root 200 270.000 No ( 0.59500 0.40500 )
    2) Price < 96.5 40  47.050 Yes ( 0.27500 0.72500 )
      4) Population < 414 31  40.320 Yes ( 0.35484 0.64516 )
        8) ShelveLoc: Bad,Medium 25  34.300 Yes ( 0.44000 0.56000 )
         16) Age < 64.5 17  20.600 Yes ( 0.29412 0.70588 )
           32) Education < 13.5 7   0.000 Yes ( 0.00000 1.00000 ) *
           33) Education > 13.5 10  13.860 Yes ( 0.50000 0.50000 )
             66) Education < 16.5 5   5.004 No ( 0.80000 0.20000 ) *
             67) Education > 16.5 5   5.004 Yes ( 0.20000 0.80000 ) *
         17) Age > 64.5 8   8.997 No ( 0.75000 0.25000 ) *
        9) ShelveLoc: Good 6   0.000 Yes ( 0.00000 1.00000 ) *
      5) Population > 414 9   0.000 Yes ( 0.00000 1.00000 ) *
    3) Price > 96.5 160 201.800 No ( 0.67500 0.32500 )
      6) ShelveLoc: Bad,Medium 135 154.500 No ( 0.74074 0.25926 )
       12) Price < 124.5 82 107.700 No ( 0.63415 0.36585 )
         24) Age < 49.5 34  45.230 Yes ( 0.38235 0.61765 )
           48) CompPrice < 130.5 21  28.680 No ( 0.57143 0.42857 )
             96) Population < 134.5 6   0.000 No ( 1.00000 0.00000 ) *
             97) Population > 134.5 15  20.190 Yes ( 0.40000 0.60000 )
              194) Population < 343 7   5.742 Yes ( 0.14286 0.85714 ) *
              195) Population > 343 8  10.590 No ( 0.62500 0.37500 ) *
           49) CompPrice > 130.5 13   7.051 Yes ( 0.07692 0.92308 ) *
         25) Age > 49.5 48  46.330 No ( 0.81250 0.18750 )
           50) CompPrice < 124.5 28  14.410 No ( 0.92857 0.07143 )
            100) Price < 101.5 8   8.997 No ( 0.75000 0.25000 ) *
            101) Price > 101.5 20   0.000 No ( 1.00000 0.00000 ) *
           51) CompPrice > 124.5 20  25.900 No ( 0.65000 0.35000 )
            102) Price < 119 14  19.410 No ( 0.50000 0.50000 )
              204) Advertising < 10.5 9  11.460 No ( 0.66667 0.33333 ) *
              205) Advertising > 10.5 5   5.004 Yes ( 0.20000 0.80000 ) *
            103) Price > 119 6   0.000 No ( 1.00000 0.00000 ) *
       13) Price > 124.5 53  33.120 No ( 0.90566 0.09434 )
         26) Population < 393.5 34   0.000 No ( 1.00000 0.00000 ) *
         27) Population > 393.5 19  21.900 No ( 0.73684 0.26316 )
           54) CompPrice < 143.5 13   7.051 No ( 0.92308 0.07692 ) *
           55) CompPrice > 143.5 6   7.638 Yes ( 0.33333 0.66667 ) *
      7) ShelveLoc: Good 25  31.340 Yes ( 0.32000 0.68000 )
       14) Income < 43 7   8.376 No ( 0.71429 0.28571 ) *
       15) Income > 43 18  16.220 Yes ( 0.16667 0.83333 )
         30) US: No 6   8.318 Yes ( 0.50000 0.50000 ) *
         31) US: Yes 12   0.000 Yes ( 0.00000 1.00000 ) *

Prediction

In order to properly evaluate the performance of a classification tree on these data, we must estimate the test error rather than simply computing the training error.

We have split the observations into a training set and a test set, and the tree has been built using the training set.

After this, the tree performance is evaluated on the test data. The predict() function can be used for this purpose.

tree.pred=predict(tree.mydataset,mydataset.test,type="class")
res <- table(tree.pred,High.test)
res
         High.test
tree.pred  No Yes
      No  104  33
      Yes  13  50
accrcy <- sum(diag(res)/sum(res))

The accuracy is 0.77 or misclassification error rate is 0.23, which are respectively smaller and biiger than those computed from the tree built on the train data.

Pruning the tree (Tunning model)

We know there is a chance that fitting the tree produces some overfitting so we can consider whether pruning the tree could lead to improved results.

The function cv.tree() performs cross-validation in order to determine the optimal level of tree complexity. - Cost complexity pruning is used in order to select a sequence of trees for consideration. - We use the argument FUN = prune.misclass in order to indicate that we want the classification error rate to guide the cross-validation and pruning process, rather than the default for the cv.tree() function, which is deviance.

The cv.tree() function reports the number of terminal nodes of each tree considered (size) as well as the corresponding error rate and the value of the cost-complexity parameter used

set.seed(123987)
cv.mydataset=cv.tree(tree.mydataset,FUN=prune.misclass)
names(cv.mydataset)
[1] "size"   "dev"    "k"      "method"
cv.mydataset
$size
[1] 21 19 14  9  8  5  3  2  1

$dev
[1] 82 80 78 78 78 76 76 84 82

$k
[1] -Inf  0.0  1.0  1.4  2.0  3.0  4.0  9.0 18.0

$method
[1] "misclass"

attr(,"class")
[1] "prune"         "tree.sequence"

Note that, despite the name, dev corresponds to the cross-validation error rate in this instance.

The output shows how, as the size of the tree increases, so does the deviance.

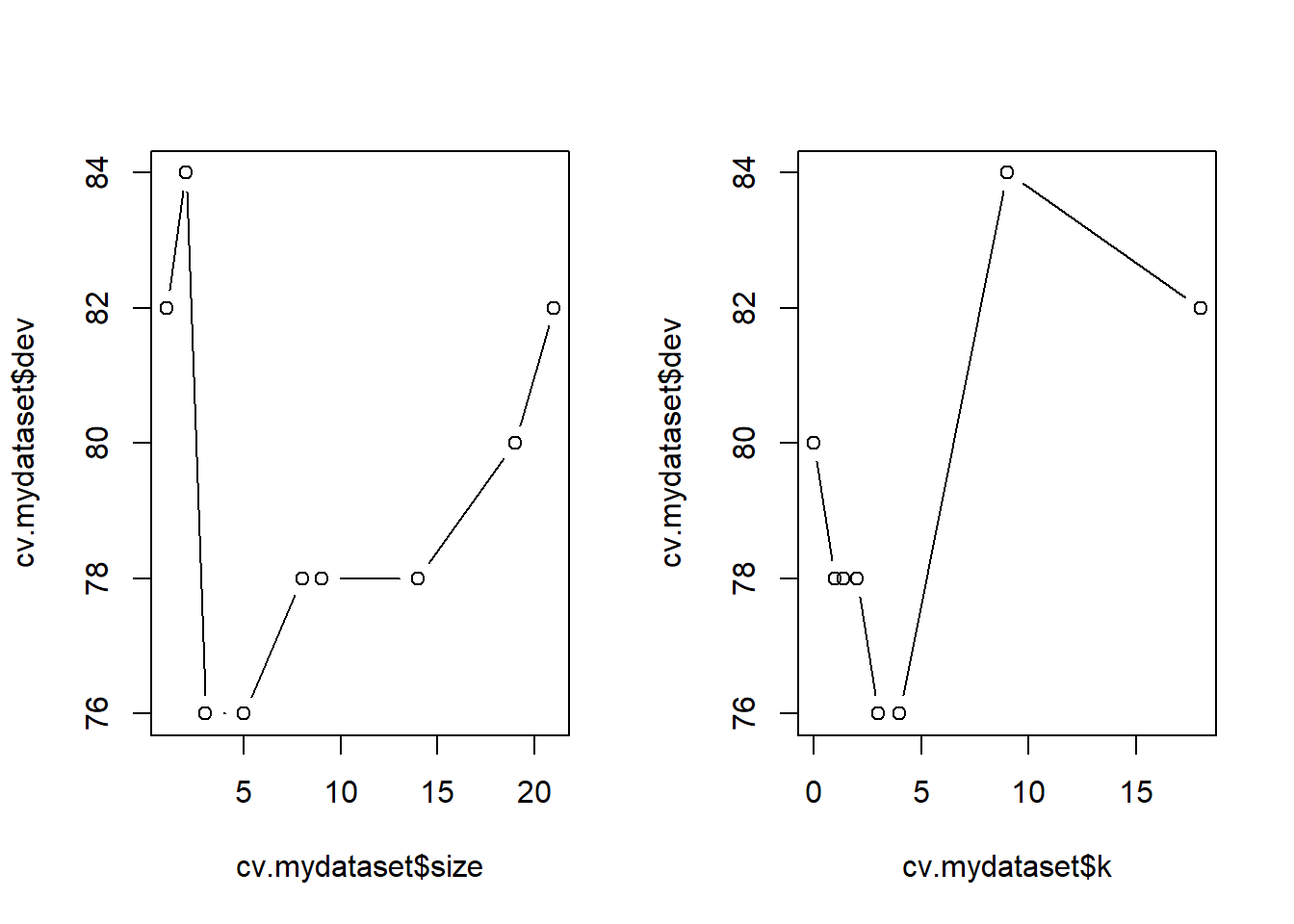

This can be better visualized by plotting the error rate as a function of sizeand k.

par(mfrow=c(1,2))
plot(cv.mydataset$size,cv.mydataset$dev,type="b")
plot(cv.mydataset$k,cv.mydataset$dev,type="b")

par(mfrow=c(1,1))

These plots can be used to suggest the best tree, but it can also be chosen automatically by taking the minimal value \(k\) from the output of the cv.tree function.

myBest <- cv.mydataset$size[which.min(cv.mydataset$dev)]

Now, the prune.misclass() function can be used to prune the tree and obtain a “best tree”. If we decide to call the best tree the one that has reached the smallest deviance we can proceed as follows:

prune.mydataset=prune.misclass(tree.mydataset,best=myBest)
plot(prune.mydataset)
text(prune.mydataset,pretty=0)

The tree is clearly smaller than the original one, but how well does this pruned tree perform on the test data set?

prunedTree.pred=predict(prune.mydataset,mydataset.test,type="class")
prunedRes <- table(prunedTree.pred,High.test)
prunedRes
               High.test
prunedTree.pred No Yes
            No  82  16
            Yes 35  67
prunedAccrcy <- sum(diag(prunedRes)/sum(prunedRes))

The accuracy is 0.745.

If we increase the value of best, for example 21 terminal nodes, we obtain a larger pruned tree with lower classification accuracy:

prune.mydataset=prune.misclass(tree.mydataset,
                               best = cv.mydataset$size[1])
plot(prune.mydataset)
text(prune.mydataset, pretty=0)

Other classification pruned tree
ptree.pred=predict(prune.mydataset, mydataset.test, type="class")
pres <- table(ptree.pred, High.test)
pres
          High.test
ptree.pred  No Yes
       No  104  31
       Yes  13  52
paccrcy <- sum(diag(pres)/sum(pres))

The accuracy is 0.78.

In conclusion It can be seen that the difference in accuracy between the pruned tree and the original one is small. Indeed, changing the seed for splitting can lead to both smaller or bigger accuracy in the pruned tree than in the original one.

Obviously, the pruned tree is smaller so even if the original tree is slightly more accurate than the pruned one we might prefer the second one, because it is relying on less data to produce almost the same accuracy, whic is something that most users usually prefer.

Predicting car sales with regression trees

A reasonable question is how would the accuracy of the trees be affected if, instead of categorizing sales we had used it “as.is”, building a regression tree instead.

Although it may seem straightforward to answer this question by building a regression tree using the approach described in next section, the fact is that it is no so immediate as it may seem.

The reason for this is that, if we wish to compare the perfomance of both approaches we need a common measure of accuracy. For regression trees the Mean Square Error is generally used, while accuracy or some other measures derived from the confusion matrix are common for classification trees. Comparing those two measures, however, is not straightforward. One may think of relying on some kind of information measure, that can be computed on both regresion and classification trees such as entropy or Kullback-Leiber divergence, but the problem then is how to derive such measure for both the classification and the regression trees.

Regression Trees: Predicting numerical (response) variables

The Car Sales problem (again)

Even if we do not aim at comparing regression and classification problems, the carseats problem proivides a good example on how to build and optimize a regression tree.

Remember our goal is to predict car sales from a simulated data set containing sales of child car seats at different stores [@james2013introduction]. In order to make sections reproducible, we reload the package and the data.

Get the Data

require(ISLR2)
data("Carseats")
mydataset <- Carseats

Create train/test sets

We split original data into test and training sets. Package resample allows to do a weighted splitting to enbsure that no class is underrepresented due to chance. If sample size is high this can usually be ignored.

# Split the data into training and test sets
set.seed(2)
pt <- 1/2
train <- sample(1:nrow(mydataset), pt * nrow(mydataset))
mydataset.test <- mydataset[-train,]
sales.test <- mydataset$Sales[-train]

Build (and check) the model

# Fit the regression tree using the Sales variable

tree.mydataset <- tree(Sales ~ . , mydataset,
                       subset = train)

# Summary of the fitted regression tree
summary(tree.mydataset)

Regression tree:
tree(formula = Sales ~ ., data = mydataset, subset = train)
Variables actually used in tree construction:
[1] "Price"       "ShelveLoc"   "CompPrice"   "Age"         "Advertising"
[6] "Population"
Number of terminal nodes:  14
Residual mean deviance:  2.602 = 484 / 186
Distribution of residuals:
    Min.  1st Qu.   Median     Mean  3rd Qu.     Max.
-4.71700 -1.08700 -0.01026  0.00000  1.11300  4.06600

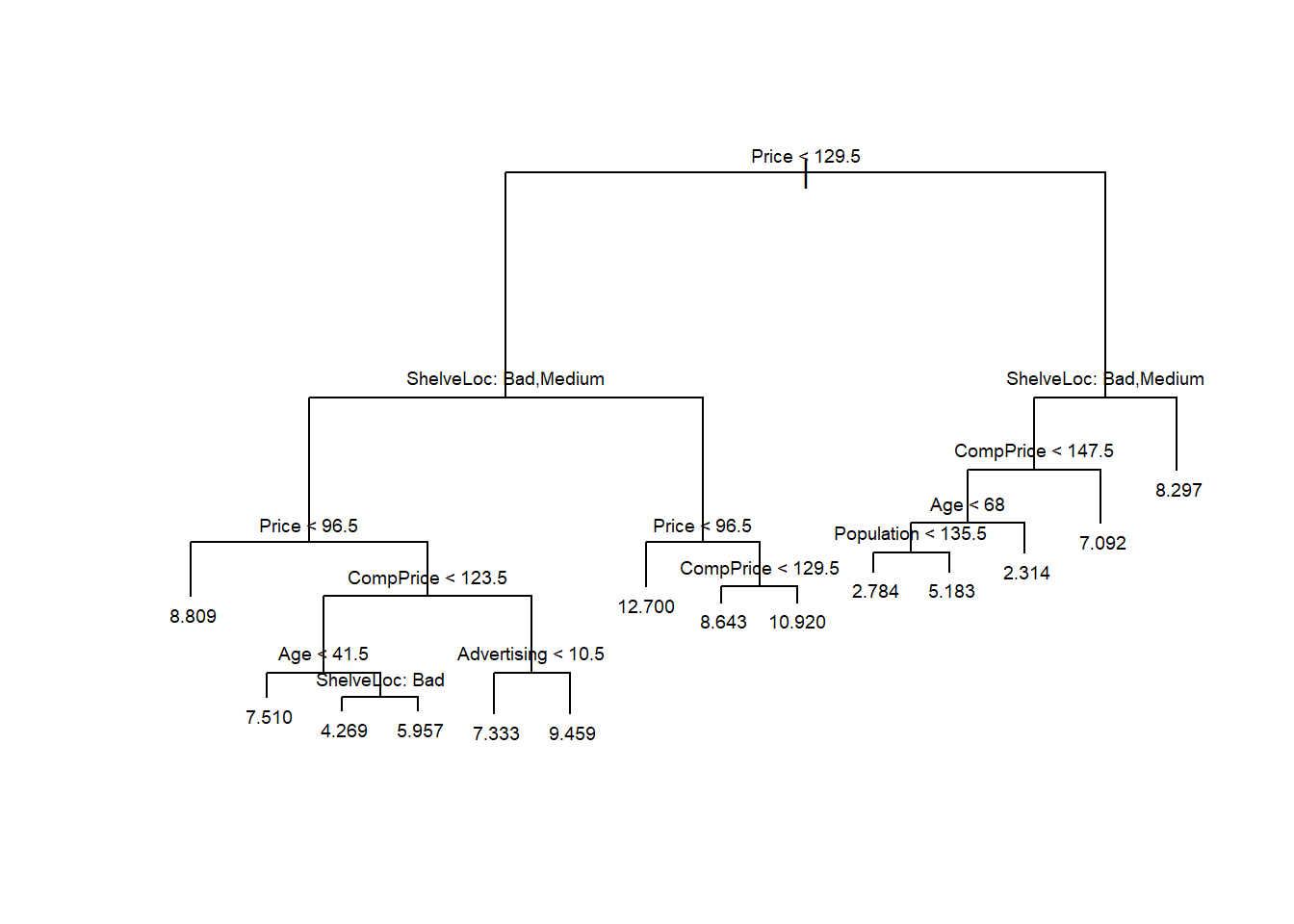

# Plot the regression tree
plot(tree.mydataset)
text(tree.mydataset, pretty = 0, cex = 0.6)

Make prediction

# Predict using the test data
tree.pred <- predict(tree.mydataset, mydataset.test)

Estimate prediction error

A common measure of prediction error is the Mean Square Error.

Notice that it is computed from a direct substraction between the predicted sales and the original values in the test subset.

mse1 <- mean((tree.pred - sales.test)^2)
mse1
[1] 4.471569

The mean squared error obtained from the original tree is 4.4715694.

Optimize the tree

In order to optimize the trune we first compute the best cost-complexity parameter using cross-validation and then use it to prune the tree.

# Prune the regression tree
set.seed(123987)
cv.mydataset <- cv.tree(tree.mydataset, FUN = prune.tree)
names(cv.mydataset)
[1] "size"   "dev"    "k"      "method"
cv.mydataset
$size
 [1] 14 13 12 11 10  9  8  7  6  4  3  2  1

$dev
 [1] 1146.347 1178.392 1178.275 1201.676 1239.316 1217.896 1242.089 1253.068
 [9] 1202.806 1211.749 1206.363 1295.017 1578.720

$k
 [1]      -Inf  16.92509  19.38585  23.44178  29.89370  36.28493  50.16562
 [8]  54.84825  65.75957  80.79945  90.11022 179.77305 277.78708

$method
[1] "deviance"

attr(,"class")
[1] "prune"         "tree.sequence"

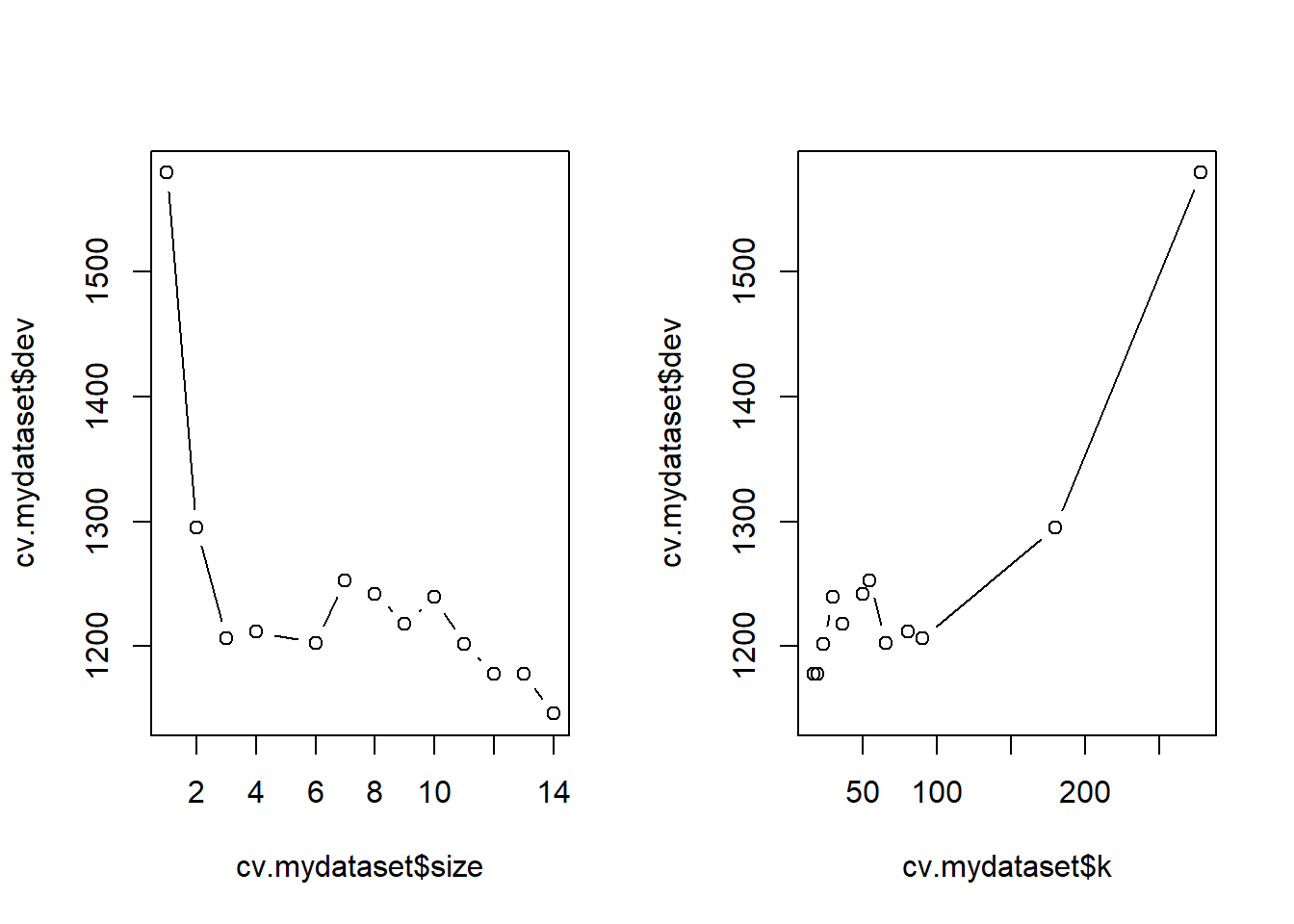

Before selecting the best \(\alpha\) value it may be useful to plot the MSE as a function of the tree size or of \(\alpha\) itself. Notice that \(\alpha\) is named as “\(k\)” in the tree package.

# Plot the cross-validation error
par(mfrow = c(1, 2))
plot(cv.mydataset$size, cv.mydataset$dev, type = "b")
plot(cv.mydataset$k, cv.mydataset$dev, type = "b")

par(mfrow = c(1, 1))

It seems clear that, in this case, the smallest error is attained when the tree is not pruned (size=14), so the “best” value of \(\alpha\) leads to not pruning the tree.

# Choose the best tree size
myBest <- cv.mydataset$size[which.min(cv.mydataset$dev)]

# Prune the tree with the best size
prune.mydataset <- prune.tree(tree.mydataset,
                              best = myBest)

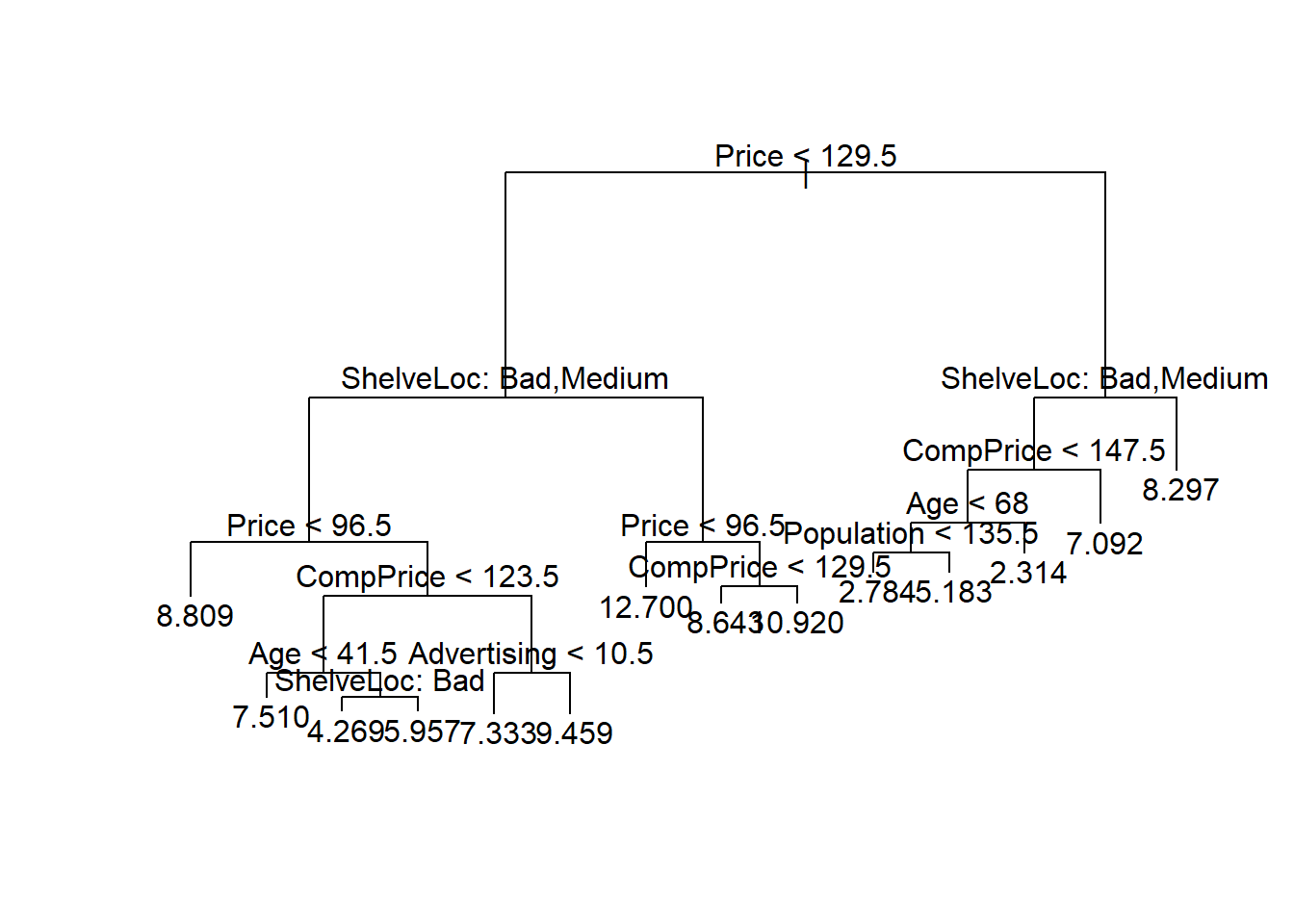

# Plot the pruned regression tree
plot(prune.mydataset)
text(prune.mydataset, pretty = 0)

# Predict using the pruned tree
prunedTree.pred <- predict(prune.mydataset, mydataset.test)

# Calculate mean squared error for pruned tree
prunedMSE <- mean((prunedTree.pred - sales.test)^2)
prunedMSE
[1] 4.471569

In this case, pruning does not improve the tree and the best tree is the one returned by the initial tun of the algorithm.

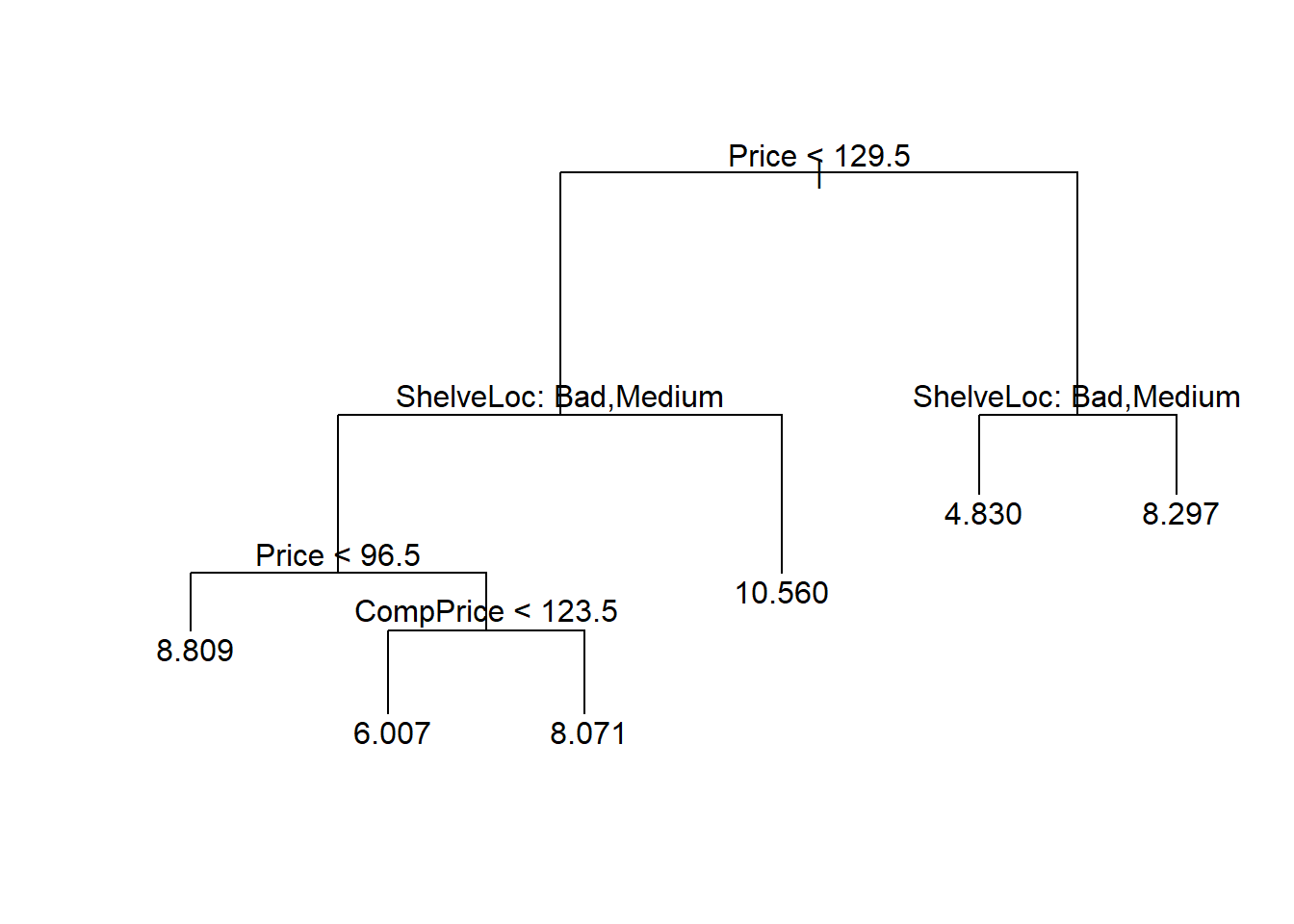

If however, we look for a compromise between the tree size and the deviance we can choose, based on the cv plots, a size of 6 or even 3:

# Prune the tree with the best size
pruneto5.mydataset <- prune.tree(tree.mydataset,
                              best = 6)

# Plot the pruned regression tree
plot(pruneto5.mydataset)
text(pruneto5.mydataset, pretty = 0)

# Predict using the pruned tree
prunedTree5.pred <- predict(pruneto5.mydataset, mydataset.test)

# Calculate mean squared error for pruned tree
prunedMSE5 <- mean((prunedTree5.pred - sales.test)^2)
prunedMSE5
[1] 5.001169

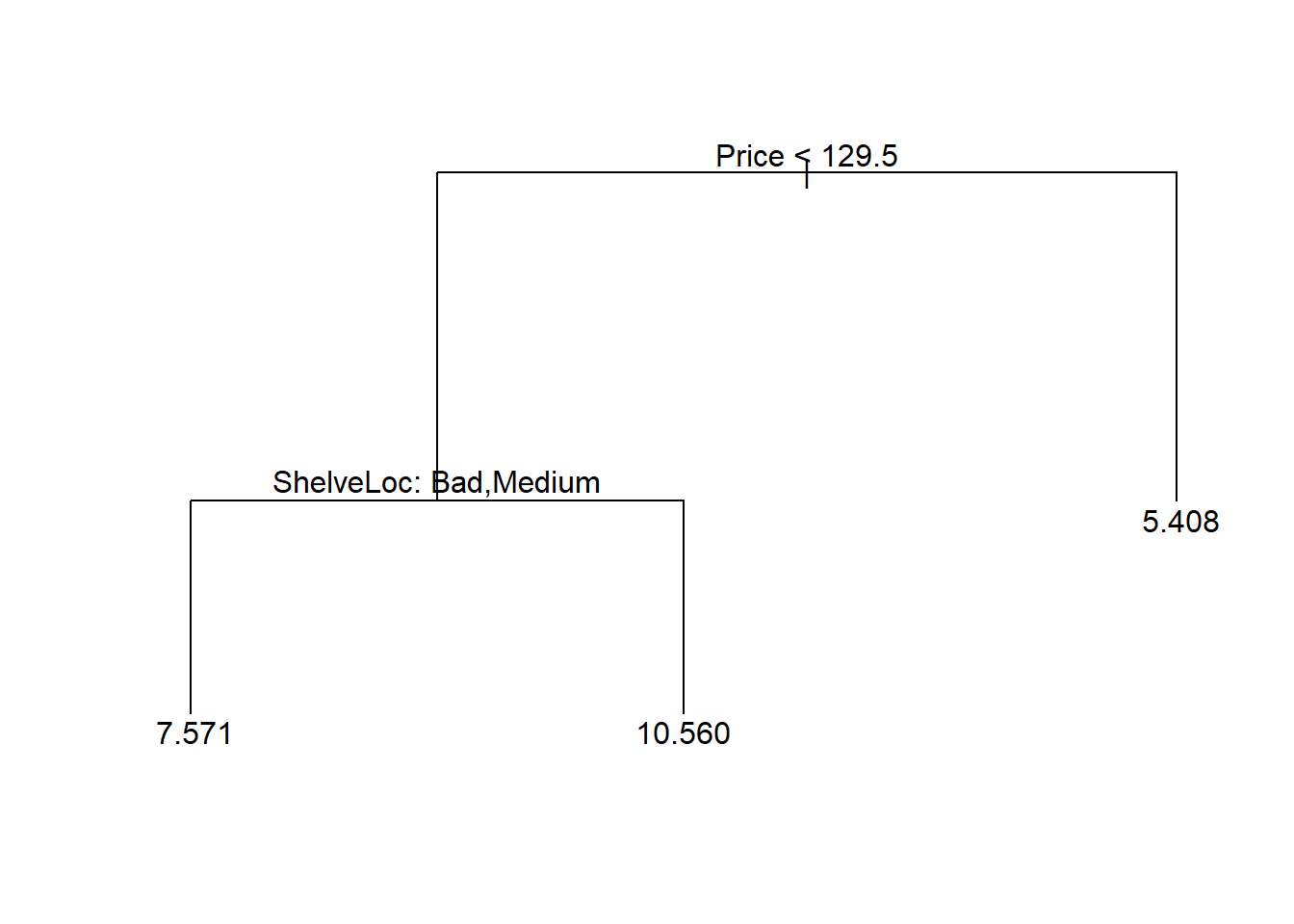

# Prune the tree with the best size
pruneto3.mydataset <- prune.tree(tree.mydataset,
                              best = 3)

# Plot the pruned regression tree
plot(pruneto3.mydataset)
text(pruneto3.mydataset, pretty = 0)

# Predict using the pruned tree
prunedTree3.pred <- predict(pruneto3.mydataset, mydataset.test)

# Calculate mean squared error for pruned tree
prunedMSE3 <- mean((prunedTree3.pred - sales.test)^2)
prunedMSE3
[1] 6.555128

Clearly, the best compromise seems to prune with a size of 5, which hardly increases the MSE while providinga good simplification of the tree

Predicting Boston house prices

This example is borrowed from [@amat2017].

The Boston dataset available in the MASS package contains housing prices for the city of Boston, as well as socioeconomic information for the neighborhood in which they are located.

library(ISLR2)
data("Boston")
datos <- Boston
head(datos, 3)
     crim zn indus chas   nox    rm  age    dis rad tax ptratio lstat medv
1 0.00632 18  2.31    0 0.538 6.575 65.2 4.0900   1 296    15.3  4.98 24.0
2 0.02731  0  7.07    0 0.469 6.421 78.9 4.9671   2 242    17.8  9.14 21.6
3 0.02729  0  7.07    0 0.469 7.185 61.1 4.9671   2 242    17.8  4.03 34.7

Our goal is to fit a regression model that allows predicting the average price of a home (medv) based on the available variables.

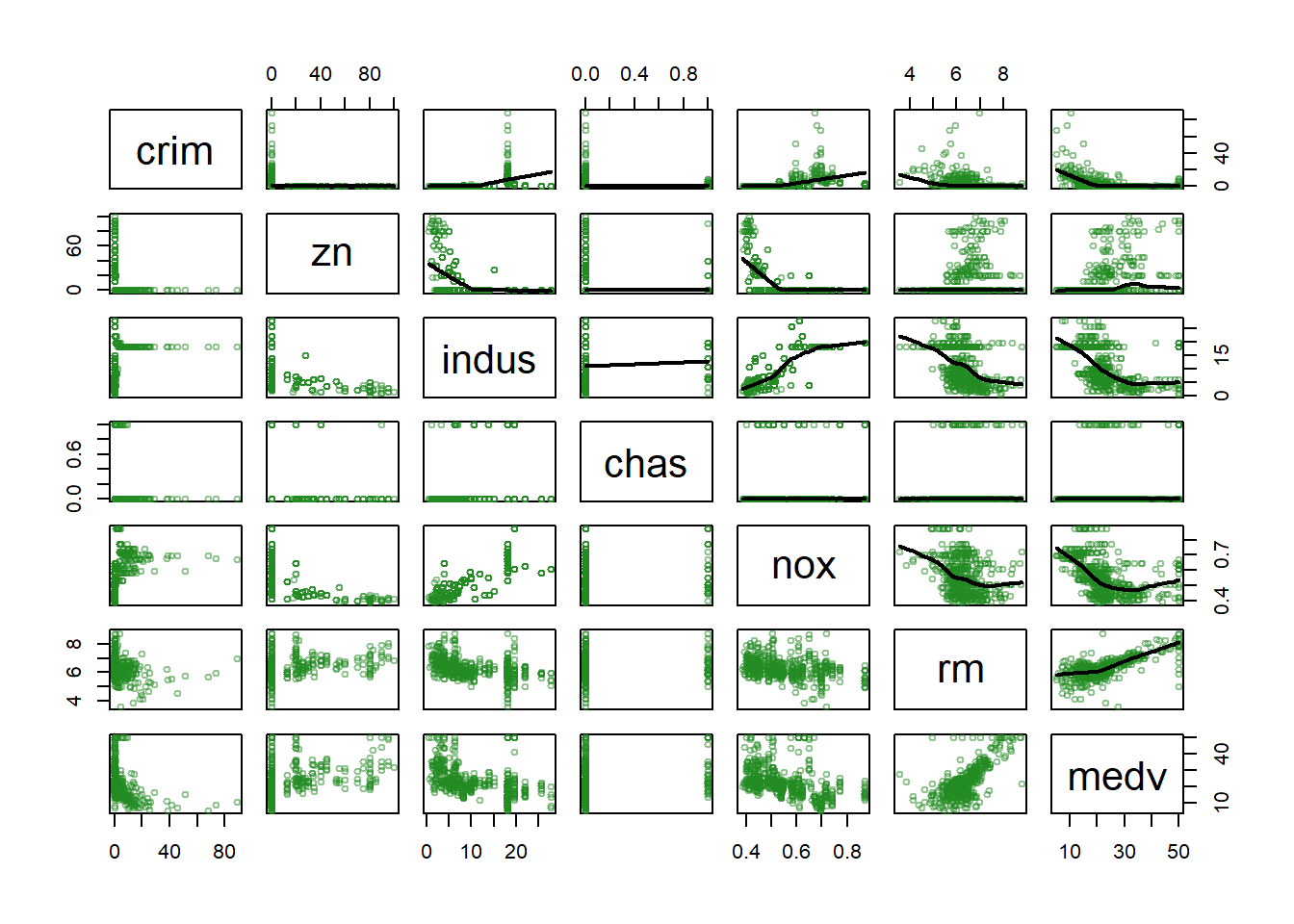

A quick visualization of the available variables shows that, not only they are of mixed types, but also the relation between them is far from linear inmost if not all cases.

color <- adjustcolor("forestgreen", alpha.f = 0.5)
ps <- function(x, y, ...) {  # custom panel function
  panel.smooth(x, y, col = color, col.smooth = "black",
               cex = 0.7, lwd = 2)
}
nc<- ncol(datos)
pairs(datos[,c(1:6,nc)], cex = 0.7, upper.panel = ps, col = color)

# pairs(datos[,c(7:14)], cex = 0.7, upper.panel = ps, col = color)

This is a good scenario to consider regression trees as a good option.

Model fitting

Create a train and test sets

set.seed(123)
train <- sample(1:nrow(datos), size = nrow(datos)/2)
datos_train <- datos[train,]
datos_test  <- datos[-train,]

We use the tree function of the tree package to build the model. This function grows the tree until it meets a stop condition. By default, these conditions are:

  • mincut: minimum number of observations that at least one of the child nodes must have for the division to occur.
  • minsize: minimum number of observations a node must have in order for it to be split.
set.seed(123)
regTree<- tree::tree(
                    formula = medv ~ .,
                    data    = datos_train,
                    split   = "deviance",
                    mincut  = 20,
                    minsize = 50
                  )
summary(regTree)

Regression tree:
tree::tree(formula = medv ~ ., data = datos_train, split = "deviance",
    mincut = 20, minsize = 50)
Variables actually used in tree construction:
[1] "rm"    "lstat" "dis"   "tax"
Number of terminal nodes:  6
Residual mean deviance:  20.56 = 5078 / 247
Distribution of residuals:
    Min.  1st Qu.   Median     Mean  3rd Qu.     Max.
-14.5500  -2.8680  -0.3628   0.0000   2.0050  22.1300

The summary shows that the trained tree has a total of 6 terminal nodes and that the variables rm, lstat, dis and tax have been used as predictors.

In the context of regression trees, the Residual mean deviance term is the residual sum of squares divided by (number of observations - number of terminal nodes). The smaller the deviance, the better the fit of the tree to the training observations.

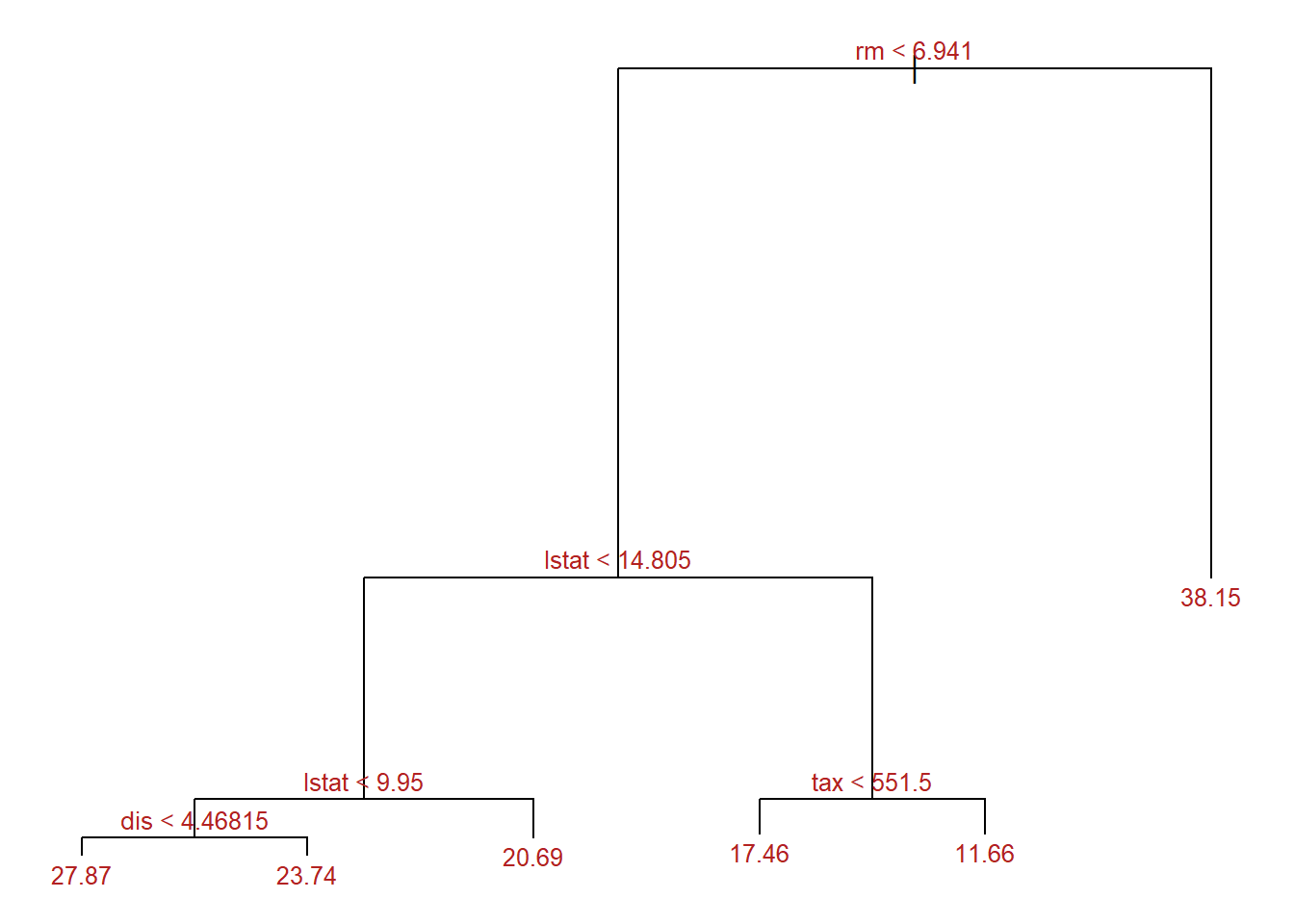

The tree can be visualized:

par(mar = c(1,1,1,1))
plot(x = regTree, type = "proportional")
text(x = regTree, splits = TRUE, pretty = 0, cex = 0.8, col = "firebrick")

Prunning the tree

We use the cv.tree function that uses cross validation to identify the optimal penalty value. By default, this function relies on the deviance to guide the pruning process.

We grow the tree again with less restrictive parameters so we have a big tree to prune:

regTree2<- tree::tree(
                    formula = medv ~ .,
                    data    = datos_train,
                    split   = "deviance",
                    mincut  = 1,
                    minsize = 2,
                    mindev  = 0
                  )
set.seed(123)
cv_regTree2 <- tree::cv.tree(regTree2, K = 5)

The function returns an object cv_regTree2 containing:

  • size: The size (number of terminal nodes) of each tree.
  • dev: The cross-validation test error estimate for each tree size.
  • k: The range of penalty values \(\alpha\) evaluated.
  • method: The criteria used to select the best tree.

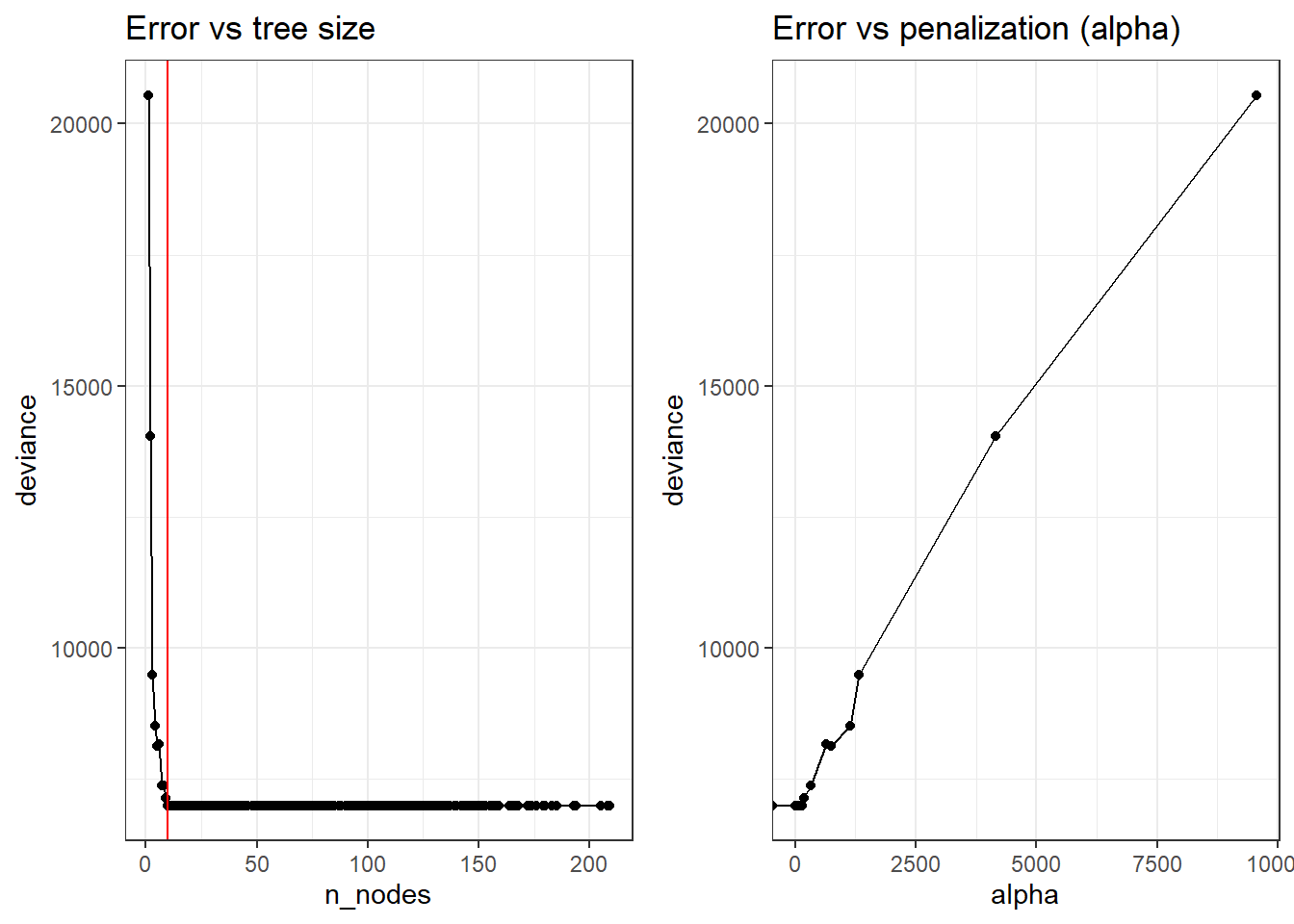

These can be used to visualize and understand the optimization performed.

optSize <- rev(cv_regTree2$size)[which.min(rev(cv_regTree2$dev))]
paste("Optimal size obtained is:", optSize)
[1] "Optimal size obtained is: 10"
library(ggplot2)
library(ggpubr)


resultados_cv <- data.frame(
                   n_nodes  = cv_regTree2$size,
                   deviance = cv_regTree2$dev,
                   alpha    = cv_regTree2$k
                 )

p1 <- ggplot(data = resultados_cv, aes(x = n_nodes, y = deviance)) +
      geom_line() +
      geom_point() +
      geom_vline(xintercept = optSize, color = "red") +
      labs(title = "Error vs tree size") +
      theme_bw()

p2 <- ggplot(data = resultados_cv, aes(x = alpha, y = deviance)) +
      geom_line() +
      geom_point() +
      labs(title = "Error vs penalization (alpha)") +
      theme_bw()

ggarrange(p1, p2)

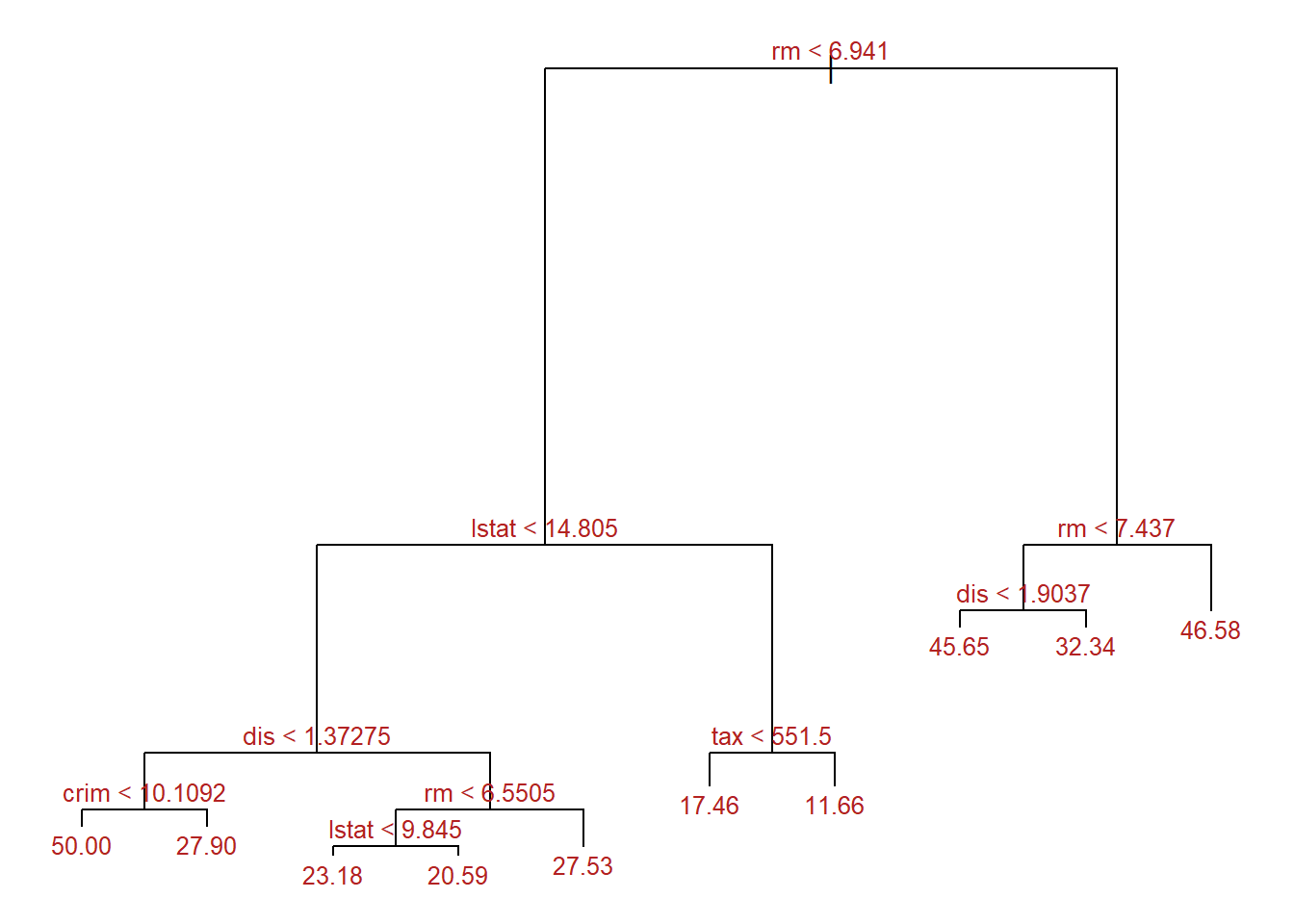

Once the optimal value identified, the final pruning is applied with the prune.tree function. This function also accepts the optimal value of \(\alpha\) instead of size.

finalTree <- tree::prune.tree(
                  tree = regTree2,
                  best = optSize
               )

par(mar = c(1,1,1,1))
plot(x = finalTree, type = "proportional")
text(x = finalTree, splits = TRUE, pretty = 0, cex = 0.8, col = "firebrick")

Predicting and checking model accuracy

We can use both, original and pruned trees to predict the data for the test set.

The quality of the prediction is based in the Root Mean Square.

For the original tree one has:

predicciones <- predict(regTree, newdata = datos_test)
test_rmse    <- sqrt(mean((predicciones - datos_test$medv)^2))
paste("Error de test (rmse) del árbol inicial:", round(test_rmse,2))
[1] "Error de test (rmse) del árbol inicial: 5.74"

And for the final tree:

predicciones_finales <- predict(finalTree, newdata = datos_test)
test_rmse    <- sqrt(mean((predicciones_finales - datos_test$medv)^2))
paste("Error de test (rmse) del árbol final:", round(test_rmse,2))
[1] "Error de test (rmse) del árbol final: 5.13"

That is The error associated with the prediction has slightly decreased, while the tree is much simpler.

That is what we ideal are aiming at!

Alternative packages for CART

Comparison between caret, rpart, and tree

Two popular packages for working with decision trees are rpart and tree. Both offer functionalities for building and visualizing decision trees. The table below shows a comparison between the main functions of these packages, as well as caret, which is a generic framework for performing classification and prediction tasks, including trees.

Table: Comparison of important functions for working with decision trees

Function / Package tree rpart caret
Building Decision Tree tree() rpart() train() with method = “rpart”
Visualizing Decision Tree - plot() plot() with type = “text”
Pruning Decision Tree cv.tree() prune() train() with method = “rpart” and tuneLength > 1
Evaluating Model Performance - predict() train() with method = “rpart” and metric = “Accuracy”
Handling Missing Values na.action na.action preProcess() with method = “medianImpute”
Tuning Hyperparameters - rpart.control() train() with method = “rpart” and tuneGrid argument
Visualizing Variable Importance - importance() varImp()

Examples of usage:

Function / Package tree rpart caret
Building Decision Tree tree(Species ~ ., data = iris) rpart(Species ~ ., data = iris) train(Species ~ ., method = "rpart", data = iris)
Visualizing Decision Tree - plot(fit) plot(fit, type = "text")
Pruning Decision Tree cv.tree(Species ~ ., data = iris) prune(fit, cp = 0.02) train(Species ~ ., method = "rpart", data = iris, tuneLength = 5)
Evaluating Model Performance - pred <- predict(fit, iris, type = "class") train(Species ~ ., method = "rpart", data = iris, metric = "Accuracy")
Handling Missing Values tree(Species ~ ., data = na.omit(iris)) rpart(Species ~ ., data = na.omit(iris), na.action = na.rpart) preProcess(iris, method = "medianImpute")
Tuning Hyperparameters - rpart(Species ~ ., data = iris, control = rpart.control(cp = c(0.001, 0.01, 0.1))) train(Species ~ ., method = "rpart", data = iris, tuneGrid = expand.grid(cp = c(0.001, 0.01, 0.1)))
Visualizing Variable Importance - importance(fit) varImp(fit)

These examples illustrate how to perform various tasks related to decision trees using the tree, rpart, and caret packages. Each package has its own syntax and set of functions, so they can be used according to the user’s needs and preferences.

Exercises

This problem involves the OJ data set which is part of the ISLR2 package.

  1. Create a training set containing a random sample of 800 observations, and a test set containing the remaining observations.
  2. Fit a tree to the training data, with Purchase as the response and the other variables as predictors. Use the summary () function to produce summary statistics about the tree, and describe the results obtained. What is the training error rate? How many terminal nodes does the tree have?
  3. Type in the name of the tree object in order to get a detailed text output. Pick one of the terminal nodes, and interpret the information displayed.
  4. Create a plot of the tree, and interpret the results.
  5. Predict the response on the test data, and produce a confusion matrix comparing the test labels to the predicted test labels. What is the test error rate?
  6. Apply the cv.tree() function to the training set in order to determine the optimal tree size.
  7. Produce a plot with tree size on the \(x\)-axis and cross-validated classification error rate on the \(y\)-axis.
  8. Which tree size corresponds to the lowest cross-validated classification error rate?
  9. Produce a pruned tree corresponding to the optimal tree size obtained using cross-validation. If cross-validation does not lead to selection of a pruned tree, then create a pruned tree with five terminal nodes.
  10. Compare the training error rates between the pruned and unpruned trees. Which is higher?
  11. Compare the test error rates between the pruned and unpruned trees. Which is higher?

Once you have solved the exercise, try to repeat it using another R package, either rpàrt or caret. Compare the results obtained and comment about the differences observed.

References
