Tree based methods

Alex Sanchez, Ferran Reverter and Esteban Vegas

Genetics Microbiology and Statistics Department. University of Barcelona

Introduction to Decision Trees

Motivation

In many real-world applications, decisions need to be made based on complex, multi-dimensional data.
One goal of statistical analysis is to provide insights and guidance to support these decisions.
Decision trees provide a way to organize and summarize information in a way that is easy to understand and use in decision-making.

Examples

A bank needs to have a way to decide if/when a customer can be granted a loan.
A doctor may need to decide if a patient has to undergo a surgery or a less aggressive treatment.
A company may need to decide about investing in new technologies or stay with the traditional ones.

In all those cases a decision tree may provide a structured approach to decision-making that is based on data and can be easily explained and justified.

An intuitive approach

Decisions are often based on asking several questions on available information whose answers induce binary splits on data that end up with some grouping or classification.

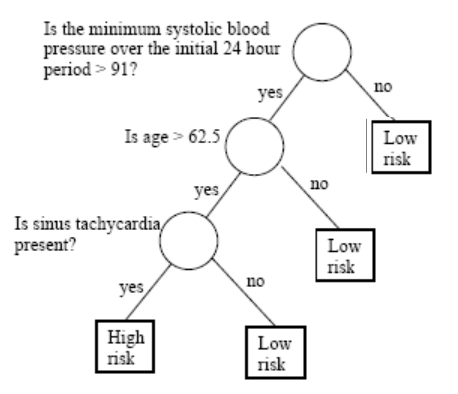

A doctor may classify patients at high or low cardiovascular risk using some type of decision tree

Introducing decision trees

A decision tree is a graphical representation of a series of decisions and their potential outcomes.
It is obtained by recursively stratifying or segmenting the feature space into a number of simple regions.
Each region (decision) corresponds to a node in the tree, and each potential outcome to a branch.
The tree structure can be used to guide decision-making based on data.

Types of decision trees

Decision trees are simple yet reliable predictors that can be use for both classification or prediction
- Classification Trees are classifiers, used when the response variable is categorical
- Regression Trees, are regression models used to predict the values of a numerical response variable.

Tree building with R

Package	Algorithm	Dataset size	Missing data handling	Visual repr
`rpart`	RPART	Medium to large	Poor	Yes
`caret`	Various	Various	Depends on algorithm	Depends on algorithm
`tree`	CART	Small to medium	Poor	Yes

Tree building with Python

Package	Algorithm	Dataset size	Missing data handling	Visual repr
`scikit-learn`	CART, ID3, C4.5	Small to medium	Poor (requires preprocessing)	Yes (`plot_tree()`)
`xgboost`	Gradient Boosted Trees	Medium to large	Good (handles missing values natively)	Limited (requires external tools)
`lightgbm`	Gradient-based One-Side Sampling (GOSS)	Large	Good (handles missing values natively)	Limited (requires external tools)
`catboost`	Oblivious Decision Trees	Large	Excellent (handles categorical and missing values natively)	Limited (built-in tools available)
`pydotplus`	Visualization tool	N/A	N/A	Yes (graph-based visualization)

Building Classification Trees

Building the trees

As with any model, we aim not only at construting trees.
We wish to build good trees and, if possible, optimal trees in some sense we decide.
In order to build good trees we must decide
- How to construct a tree?
- How to optimize the tree?
- How to evaluate it?

Decision Trees are Supervised Learners

Classification / Regression: Supervised Learning tasks:
There is a learning set \(\mathcal{L}=\{(\mathbf{X_i,Y_i})\}_{i=1}^n\)
And depending of \(\mathbf{Y}\) we have:
- Classification: \(\mathbf{X}\in\mathbb{R}^d,\quad Y\in\{-1,+1\}\)
- Regression \(\mathbf{X}\in\mathbb{R}^d,\quad Y\in\mathbb{R}\).

Trees vs Decision Trees

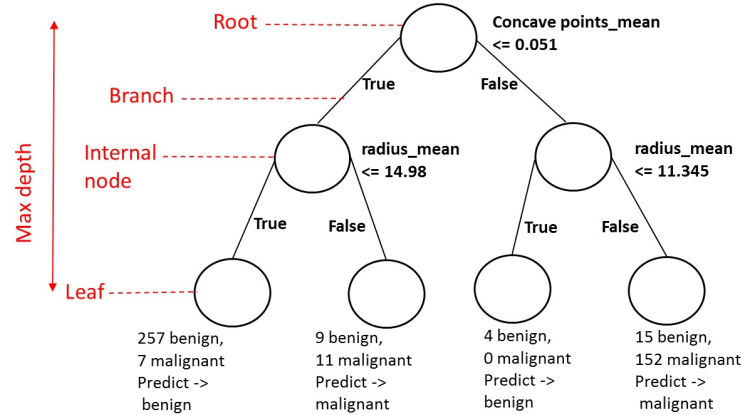

A tree is a set of nodes and edges organized in a hierarchical fashion.
In contrast to a graph, in a tree there are no loops.

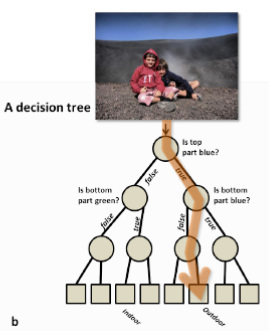

A decision tree is a tree where each split node stores a boolean test function to be applied to the incoming data.
Each leaf stores the final answer (predictor)

Additional notation

A node is denoted by \(t\).
The left and right child nodes are denoted by \(t_{L}\) and \(t_{R}\)
The collection of all nodes in the tree is denoted \(T\)
The collection of all the leaf nodes is denoted \(\tilde{T}\)
A split will be denoted by \(s\).
The set of all splits is denoted by \(S\).

Building a tree

A binary decision tree is built by defining a series of (recursive) splits on the feature space.
The splits are decided in such a way that the associated learning task is attained
- by setting thresholds on the variables values,
- that induce paths in the tree,
The ultimate goal of the tree is to be able to use a combination of the splits to accomplish the learning task with as small an error as possible.

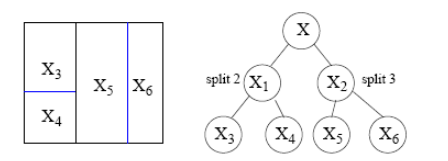

Trees partition the space

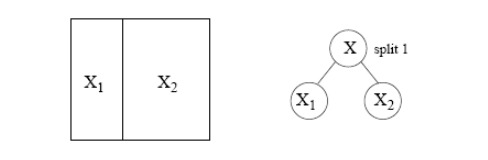

A tree represents a recursive splitting of the space.
- Every node of interest corresponds to one region in the original space.
- Two child nodes occupy two different regions.
- Together, they yield same region as that of the parent node.
In the end, every leaf node is assigned with a class (or value) and a test point is assigned with the class (or value) of the leaf node it lands in.

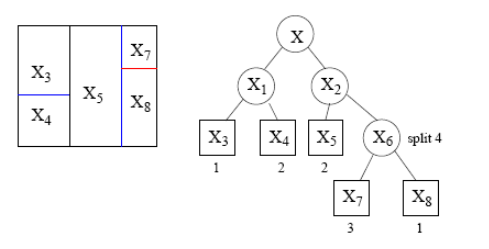

The tree represents the splitting

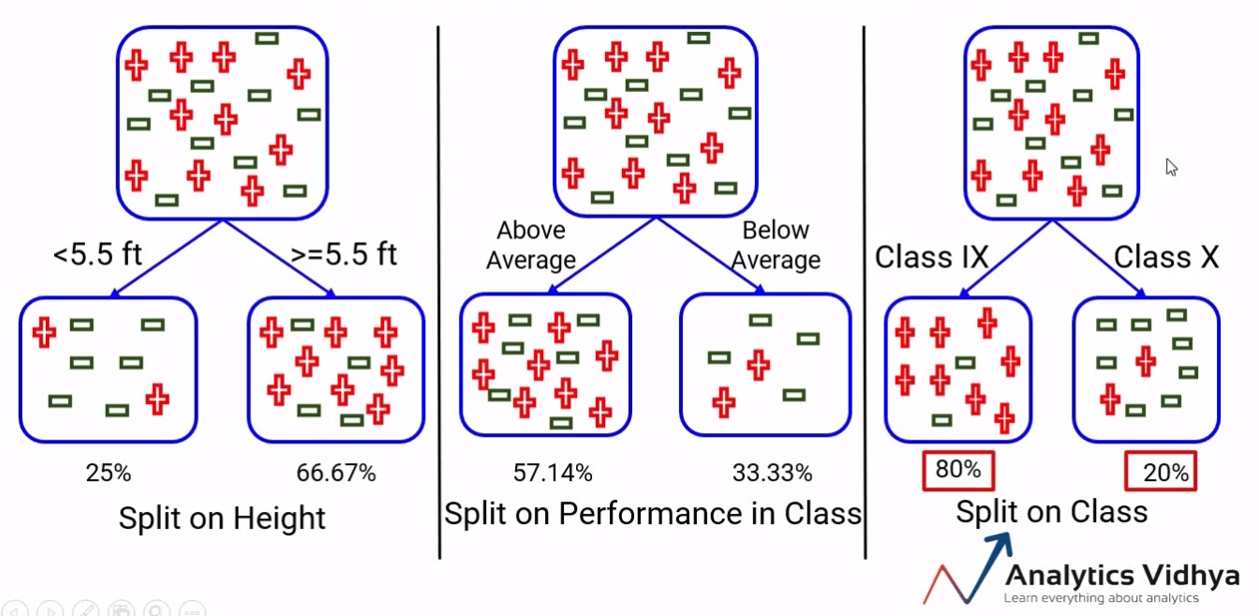

Different splits are possible

It is always possible to split a space in distinct ways

Some ways perform better than other for a given task, but rarely will they be perfect.
So we aim at combining splits to find a better rule.

Building a decision tree

Tree building involves the following three elements:

The selection of the splits, i.e., how do we decide which node (region) to split and how to split it?
- How to select from the pool of candidate splits?
- What are appropriate goodness of split criteria?
- when to declare a node terminal and stop splitting?
How to assign each terminal node to a class
How to ensure the Tree is the best possible we can build.

TB 1.1 - Split selection

To build a Tree, questions have to be generated that induce splits based on the value of a single variable.
Ordered variable \(X_j\):
- Is \(X_j \leq c\)? for all possible thresholds \(c\).
- Split lines: parallel to the coordinates.
Categorical variables, \(X_j \in \{1, 2, \ldots, M\}\):
- Is \(X_j \in A\)?, where \(A \subseteq M\) .
The pool of candidate splits for all \(p\) variables is formed by combining all the generated questions.
With the pool of candidate splits, next step is to decide which one to use when constructing the decision tree.

TB 1.2.1 - Goodness of Split

Intuitively, when we split the points we want the region corresponding to each leaf node to be “pure”.
That is, we aim at regions where most points belong to the same class.
With this goal in mind we select splits by measuring their “goodness of split” using some of the available Impurity fuctions introduced later.

TB 1.2.2 - Good splits vs bad splits

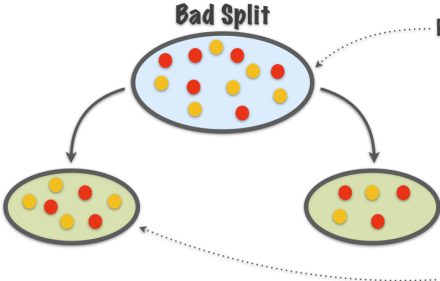

Purity not increased

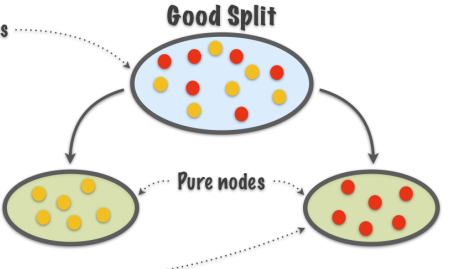

Purity increased

TB 1.2.3 - Measuring homogeneity

In order to measure homogeneity,or as called here, purity, of splits we rely on different Impurity functions
These functions allow us to quantify the extent of homogeneity for a region containing data points from possibly different classes.
- A region will be more pure or more homogeneous the less variable is the set of points it contains.
- In the image in TB 1.2.2 regions on the right of the image are homogeneous that is purer than the heterogeneous regions on the left.

TB 1.2.4 - Impurity functions

An impurity function is a function \(\Phi\) defined on the set of all \(K\)-tuples of numbers \(\mathbf{p}= \left(p_{1}, \cdots, p_{K}\right)\) s.t. \(p_{j} \geq 0, \, \sum_{j=1}^K p_{j}=1\), \[ \Phi: \left(p_{1}, \cdots, p_{K}\right) \rightarrow [0,1] \]

with the properties:

\(\Phi\) is maximum only for the uniform distribution, that is all the \(p_{j}\) are equal.
\(\Phi\) is minimum only at points \((1,0, \ldots, 0)\),\((0,1,0, \ldots, 0)\), \(\ldots,(0,0, \ldots, 0,1)\), i.e., when the probability of being in a certain class is 1 and 0 for all the other classes.
\(\Phi\) is a symmetric function of \(p_{1}, \cdots, p_{K}\), i.e., if we permute \(p_{j}\), \(\Phi\) remains constant.

TB 1.2.5 - Some Impurity Functions

The functions below are commonly used to measure impurity.

Entropy: \(\Phi_E (\mathbf{p}) = -\sum_{j=1}^K p_j\log (p_j)\) .
Gini Index: \(\Phi_G (\mathbf{p}) = 1-\sum_{j=1}^K p_j^2\).
Misclassification rate: \(\Phi_M (\mathbf{p}) = \sum_{i=1}^K p_j(1-p_j)\).

In practice, only the first two are recommended because misclassification rate is not sensitive enough to differences in class probabilies.

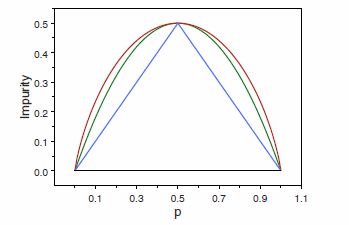

TB 1.2.5 Impurity functions behavior

Node impurity functions for the two-class case. The entropy function (rescaled) is the red curve, the Gini index is the green curve, and the resubstitution estimate of the misclassification rate is the blue curve.

TB 1.2.6 - Impurity measure of a split

Given an impurity function \(\Phi\), a node \(t\), and given \(p(j \mid t)\), the estimated posterior probability of class \(j\) given node \(t\), the impurity measure of \(t\), \(i(t)\), is:

\[ i(t)=\phi\left (p(1 \mid t), p(2 \mid t), \ldots, p(K \mid t)\right) \]

That is, the impurity measure of a split (or a node) is the impurity function computed on probabilities associated (conditional) with a node.

TB 1.2.7 - Goodness of a split

Once we have defined \(i(t)\), we define the goodness of split \(s\) for node \(t\), denoted by \(\Phi(s, t)\) :

\[ \Phi(s, t)=\Delta i(s, t)=i(t)-p_{R} i\left(t_{R}\right)-p_{L} i\left(t_{L}\right) \]

The best split for the single variable \(X_{j}\) is the one that has the largest value of \(\Phi(s, t)\) over all \(s \in \mathcal{S}_{j}\), the set of possible distinct splits for \(X_{j}\).

TB 1.2.8 - Impurity score for a node

The impurity, \(i(t)\), of a node is based solely on the estimated posterior probabilities of the classes
- That is, it doesn’t account for the size of \(t\).
This is done by the impurity score of \(t\), defined as \(I(t)=i(t)\cdot p(t)\), a weighted impurity measure of node \(t\) that takes into account:
- The estimated posterior probabilities of the classes,
- The estimated proportion of data that go to node \(t\).

TB 1.2.9 - Applications of \(I(t)\)

\(I(t)\) can be used to:
- Define the aggregated impurity of a tree, by adding the impurity scores of all terminal leaves.
- Provide a weighted measure of impurity decrease for a split: \(\Delta I(s, t)=p(t) \Delta i(s, t)\).
- Define a criteria for stop splitting a tree (see below).

TB 1.2.10 - Entropy as an impurity measure

The entropy of a node, \(t\), that is split in \(n\) child nodes \(t_1\), \(t_2\), …, \(t_n\), is:

\[ \Phi_E (\mathbf{p}) = H(\mathbf{t})=-\sum_{i=1}^{n} \underbrace{P\left(t_{i}\right)}_{p_i} \log _{2} P\left(t_{i}\right) \]

TB 1.2.11 - Goodness of split based on entropy

From here, an information gain (that is impurity decrease) measure can be introduced.
Information theoretic approach that compares
- the entropy of the parent node before the split to
- that of a weighted sum of the child nodes after the split where the weights are proportional to the number of observations in each node.

TB 1.2.12 - Information gain

For a split \(s\) and a set of observations (a node) \(t\), information gain is defined as:

\[ \begin{aligned} & IG(t, s)=\text { (original entr.) }-(\text { entr. after split) } \\ & IG(t, s)=H(t)-\sum_{i=1}^{n} \frac{\left|t_{i}\right|}{t} H\left(x_{i}\right) \end{aligned} \]

Example 1: Pears vs Apples

Consider the problem of designing an algorithm to automatically differentiate between apples and pears (class labels) given only their width and height measurements (features).

Width	Height	Fruit
7.1	7.3	Apple
7.9	7.5	Apple
7.4	7.0	Apple
8.2	7.3	Apple
7.6	6.9	Apple
7.8	8.0	Apple
7.0	7.5	Pear
7.1	7.9	Pear
6.8	8.0	Pear
6.6	7.7	Pear
7.3	8.2	Pear
7.2	7.9	Pear

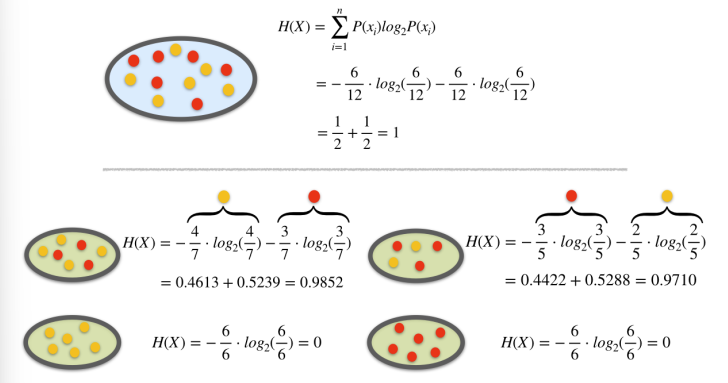

Example 1. Entropy Calculation

Example 1. Information Gain

TB. 1.3.1 - When to stop growing

Maximizing information gain is one possible criteria to choose among splits.
In order to avoid excessive complexity it is usually decided to stop splitting when information gain does not compensate for increase in complexity.

TB 1.3.2 Stop splitting criteria

In practice, stop splitting is decided when: \[ \max _{s \in S} \Delta I(s, t)<\beta, \]where:
- \(\Delta I\) represents the information gain associated with an optimal split \(s\) and a node \(t\),
- and \(\beta\) is a pre-determined threshold.

TB 1. Summary

Decision trees are built by iteratively partitioning data into smaller regions based on feature values.
Splits are aimed at producing purer nodes, that contains mostly data from one class.
Homogeneity is measured by impurity functions such as Entropy, Gini Index or Misclassification rate
The best split is chosen from candidate splits as the one that maximizes impurity reduction for example through Information Gain
Tree growth continues until impurity reduction is minimal, or a predefined depth or node size threshold is reached.

Example 2 Predicting Diabetes Onset

Example 2. The PIMA database

The Pima Indian Diabetes dataset contains 768 individuals (female) and 9 clinical variables.

Rows: 768
Columns: 9
$ pregnant <dbl> 6, 1, 8, 1, 0, 5, 3, 10, 2, 8, 4, 10, 10, 1, 5, 7, 0, 7, 1, 1…
$ glucose  <dbl> 148, 85, 183, 89, 137, 116, 78, 115, 197, 125, 110, 168, 139,…
$ pressure <dbl> 72, 66, 64, 66, 40, 74, 50, NA, 70, 96, 92, 74, 80, 60, 72, N…
$ triceps  <dbl> 35, 29, NA, 23, 35, NA, 32, NA, 45, NA, NA, NA, NA, 23, 19, N…
$ insulin  <dbl> NA, NA, NA, 94, 168, NA, 88, NA, 543, NA, NA, NA, NA, 846, 17…
$ mass     <dbl> 33.6, 26.6, 23.3, 28.1, 43.1, 25.6, 31.0, 35.3, 30.5, NA, 37.…
$ pedigree <dbl> 0.627, 0.351, 0.672, 0.167, 2.288, 0.201, 0.248, 0.134, 0.158…
$ age      <dbl> 50, 31, 32, 21, 33, 30, 26, 29, 53, 54, 30, 34, 57, 59, 51, 3…
$ diabetes <fct> pos, neg, pos, neg, pos, neg, pos, neg, pos, pos, neg, pos, n…

Example 2. Looking at the data

These Variables are known to be related with cardiovascular diseases.
It seems intuitive to use these variables to decide if a person is affected by diabetes

             p0      p25      p50       p75   p100  hist
diabetes     NA       NA       NA        NA     NA  <NA>
pregnant  0.000  1.00000   3.0000   6.00000  17.00 ▇▃▂▁▁
glucose  44.000 99.00000 117.0000 141.00000 199.00 ▁▇▇▃▂
pressure 24.000 64.00000  72.0000  80.00000 122.00 ▁▃▇▂▁
triceps   7.000 22.00000  29.0000  36.00000  99.00 ▆▇▁▁▁
insulin  14.000 76.25000 125.0000 190.00000 846.00 ▇▂▁▁▁
mass     18.200 27.50000  32.3000  36.60000  67.10 ▅▇▃▁▁
pedigree  0.078  0.24375   0.3725   0.62625   2.42 ▇▃▁▁▁
age      21.000 24.00000  29.0000  41.00000  81.00 ▇▃▁▁▁

Ex. 2. Building a classification tree

We wish to predict the probability of individuals in being diabete-positive or negative.
- We start building a tree with all the variables

library(rpart)
model1 <- rpart(diabetes ~., data = PimaIndiansDiabetes2)

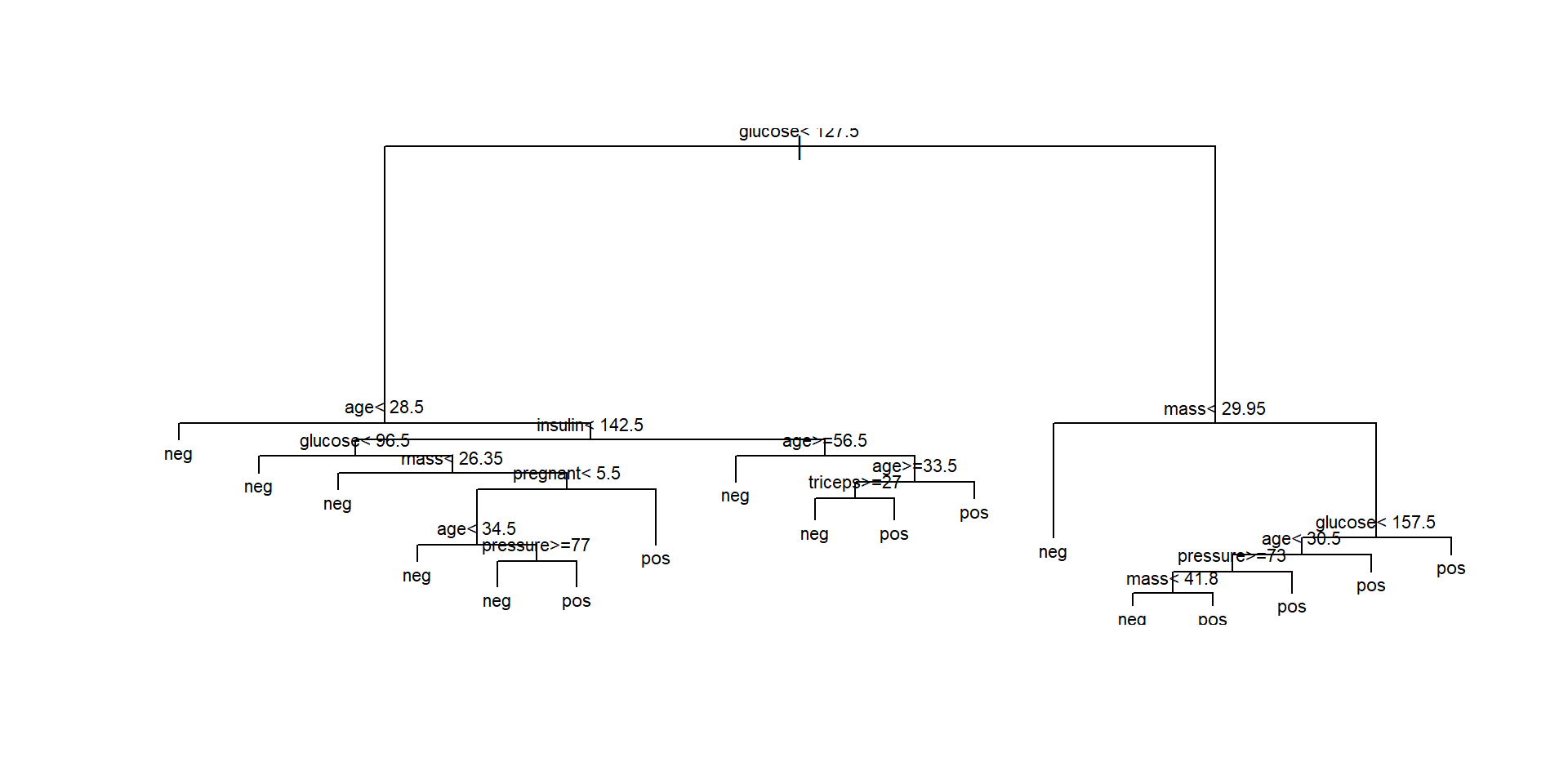

Ex.2. Plotting the tree (1)

Even without domain expertise the model seems *reasonable*

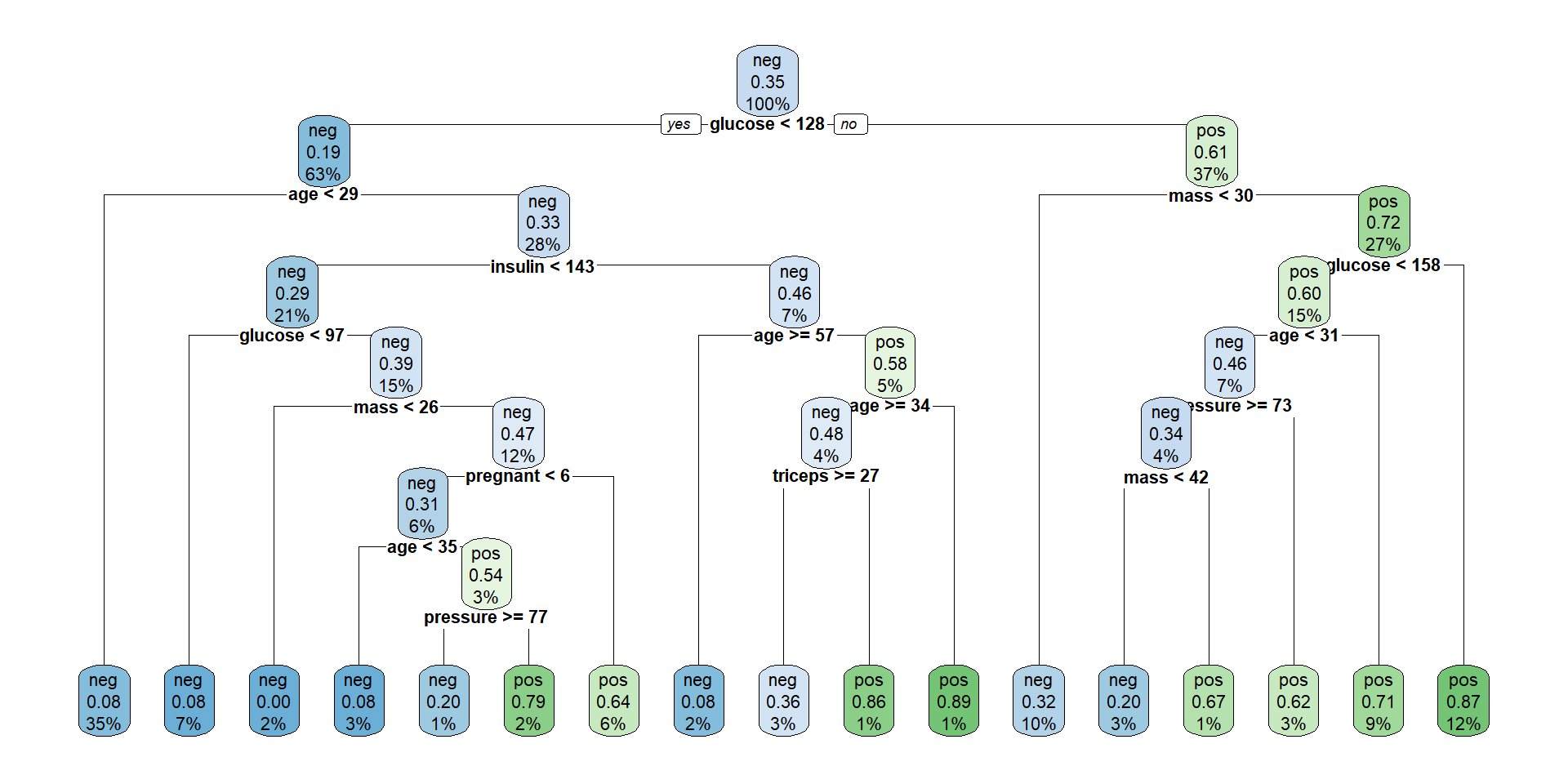

Ex. 2. Plotting the tree (Nicer)

The tree plotted with the rpart.plot package.

Each node shows: (1) the predicted class (‘neg’ or ‘pos’), (2) the predicted probability, (3) the percentage of observations in the node.

Prediction with Trees

TB 2 - Class Assignment

The decision tree classifies new data points as follows.
- We let a data point pass down the tree and see which leaf node it lands in.
- The class of the leaf node is assigned to the new data point. Basically, all the points that land in the same leaf node will be given the same class.
- This is similar to k-means or any prototype method.

TB 2.1 - Class Assignment Rules

A class assignment rule assigns a class \(j=1, \cdots, K\) to every terminal (leaf) node \(t \in \tilde{T}\).
The class is assigned to node \(t\) is denoted by \(\kappa(t)\),
- E.g., if \(\kappa(t)=2\), all the points in node \(t\) would be assigned to class 2.
If we use 0-1 loss, the class assignment rule picks the class with maximum posterior probability: \[ \kappa(t)=\arg \max _{j} p(j \mid t) \]

TB 2.2. Estimating the error rate (1)

Let’s assume we have built a tree and have the classes assigned for the leaf nodes.
Goal: estimate the classification error rate for this tree.
We use the resubstitution estimate \(r(t)\) for the probability of misclassification, given that a case falls into node \(t\). This is:

\[ r(t)=1-\max _{j} p(j \mid t)=1-p(\kappa(t) \mid t) \]

TB 2.3. Estimating the error rate (2)

Denote \(R(t)=r(t) p(t)\), that is the miscclassification error rate weighted by the probability of the node.
The resubstitution estimation for the overall misclassification rate \(R(T)\) of the tree classifier \(T\) is:

\[ R(T)=\sum_{t \in \tilde{T}} R(t) \]

Example 2: Individual prediction

Consider individuals 521 and 562

    pregnant glucose pressure triceps insulin mass pedigree age diabetes
521        2      68       70      32      66 25.0    0.187  25      neg
562        0     198       66      32     274 41.3    0.502  28      pos

521 562
neg pos
Levels: neg pos

If we follow individuals 521 and 562 along the tree, we reach the same prediction.
The tree provides not only a classification but also an explanation.

Example 2: How accurate is the model?

It is straightforward to obtain a simple performance measure.

predicted.classes<- predict(model1, PimaIndiansDiabetes2, "class")
mean(predicted.classes == PimaIndiansDiabetes2$diabetes)

[1] 0.8294271

Example 2: Is the Tree optimal?

The question becomes harder when we go back and ask if we obtained the best possible tree.
In order to answer this question we must study tree construction in more detail.

Obtaining best trees

TB 3.1 Optimizing the Tree

Trees obtained by looking for optimal splits tend to overfit: good for the data in the tree, but generalize badly and tend to fail more in predictions.
In order to reduce complexity and overfitting,
while keeping the tree as good as possible, tree pruning may be applied.
Pruning works removing branches that are unlikely to improve the accuracy of the model on new data.

TB 3.2 Pruning methods

There are different pruning methods, but the most common one is the cost-complexity pruning algorithm, also known as the weakest link pruning.
The algorithm works by adding a penalty term to the misclassification rate of the terminal nodes:

\[ R_\alpha(T) =R(T)+\alpha|T| \] where \(\alpha\) is the parameter that controls the trade-off between tree complexity and accuracy.

TB 3.3 Cost complexity pruning

Start by building a large tree that overfits the data.
Then, use cross-validation to estimate the optimal value of alpha that minimizes the generalization error.
Finally, prune the tree by removing the branches that have a smaller improvement in impurity than the penalty term multiplied by alpha.
Iterate the process until no more branches can be pruned, or until a minimum tree size is reached.

Regression Trees

Regression modelling with trees

When the response variable is numeric, decision trees are regression trees.
Option of choice for distinct reasons
- The relation between response and potential explanatory variables is not linear.
- Perform automatic variable selection.
- Easy to interpret, visualize, explain.
- Robust to outliers and can handle missing data

Classification vs Regression Trees

Aspect	Regression Trees	Classification Trees
Outcome type	Continuous	Categorical
Goal	Predict numerical value	Predict class label
Splitting criteria	Mean Squared Error, Mean Abs. Error	Gini Impurity, Entropy, etc.
Leaf node prediction	Mean/median of target variable in that region	Mode/majority class of target variable …
Use cases	Predicting housing prices, predicting stock prices	Predicting customer churn, predicting high/low risk in diease
Evaluation metric	Mean Squared Error, Mean Absolute Error, R-square	Accuracy, Precision, Recall, F1-score, etc.

Regression tree example

The airquality dataset from the datasets package contains daily air quality measurements in New York from May through September of 1973 (153 days).
The main variables include:
- Ozone: the mean ozone (in parts per billion) …
- Solar.R: the solar radiation (in Langleys) …
- Wind: the average wind speed (in mph) …
- Temp: the maximum daily temperature (ºF) …
Main goal : Predict ozone concentration.

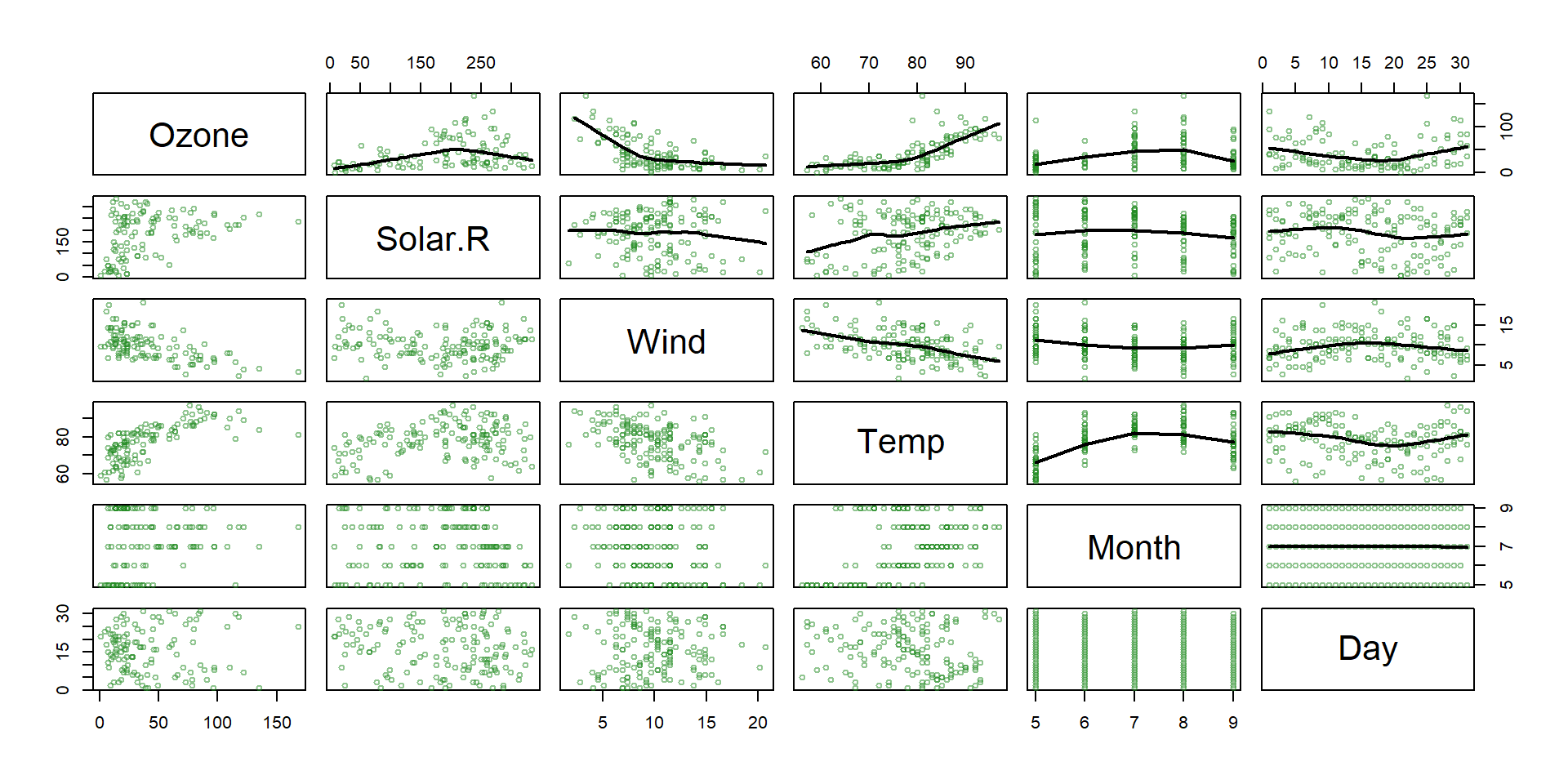

Non linear relationships!

aq <- datasets::airquality
color <- adjustcolor("forestgreen", alpha.f = 0.5)
ps <- function(x, y, ...) {  # custom panel function
  panel.smooth(x, y, col = color, col.smooth = "black", cex = 0.7, lwd = 2)
}
pairs(aq, cex = 0.7, upper.panel = ps, col = color)

Building the tree (1): Splitting

Consider:
- all predictors \(X_1, \dots, X_n\), and
- all values of cutpoint \(s\) for each predictor and
For each predictor find boxes \(R_1, \ldots, R_J\) that minimize the Resiudal Sum of Squares, RSS:

\[ \text{RSS}= \sum_{j=1}^J \sum_{i \in R_j}\left(y_i-\hat{y}_{R_j}\right)^2 \]

\(\hat{y}_{R_j}\): mean response for the training observations within the \(j\) th box.

Building the tree (2): Splitting

To do this, define the pair of half-planes

\[ R_1(j, s)=\left\{X \mid X_j<s\right\} \text { and } R_2(j, s)=\left\{X \mid X_j \geq s\right\} \]

and seek the value of \(j\) and \(s\) that minimize the equation:

\[ \sum_{i: x_i \in R_1(j, s)}\left(y_i-\hat{y}_{R_1}\right)^2+\sum_{i: x_i \in R_2(j, s)}\left(y_i-\hat{y}_{R_2}\right)^2. \]

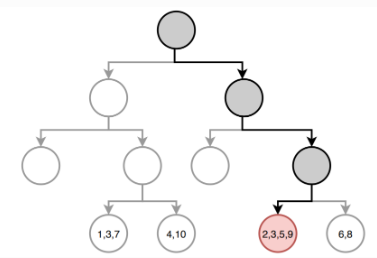

Building the tree (3): Prediction

Once the regions have been created we predict the response using the mean of the trainig observations in the region to which that observation belongs.
In the example, for an observation belonging to the shaded region, the prediction would be:

\[ \hat{y} =\frac{1}{4}(y_2+y_3+y_5+y_9) \]

Example: A regression tree

set.seed(123)
train <- sample(1:nrow(aq), size = nrow(aq)*0.7)
aq_train <- aq[train,]
aq_test  <- aq[-train,]
aq_regresion <- tree::tree(formula = Ozone ~ .,
                           data = aq_train, split = "deviance")
summary(aq_regresion)


Regression tree:
tree::tree(formula = Ozone ~ ., data = aq_train, split = "deviance")
Variables actually used in tree construction:
[1] "Temp"    "Wind"    "Solar.R" "Day"
Number of terminal nodes:  8
Residual mean deviance:  285.6 = 21420 / 75
Distribution of residuals:
    Min.  1st Qu.   Median     Mean  3rd Qu.     Max.
-58.2000  -7.9710  -0.4545   0.0000   5.5290  81.8000

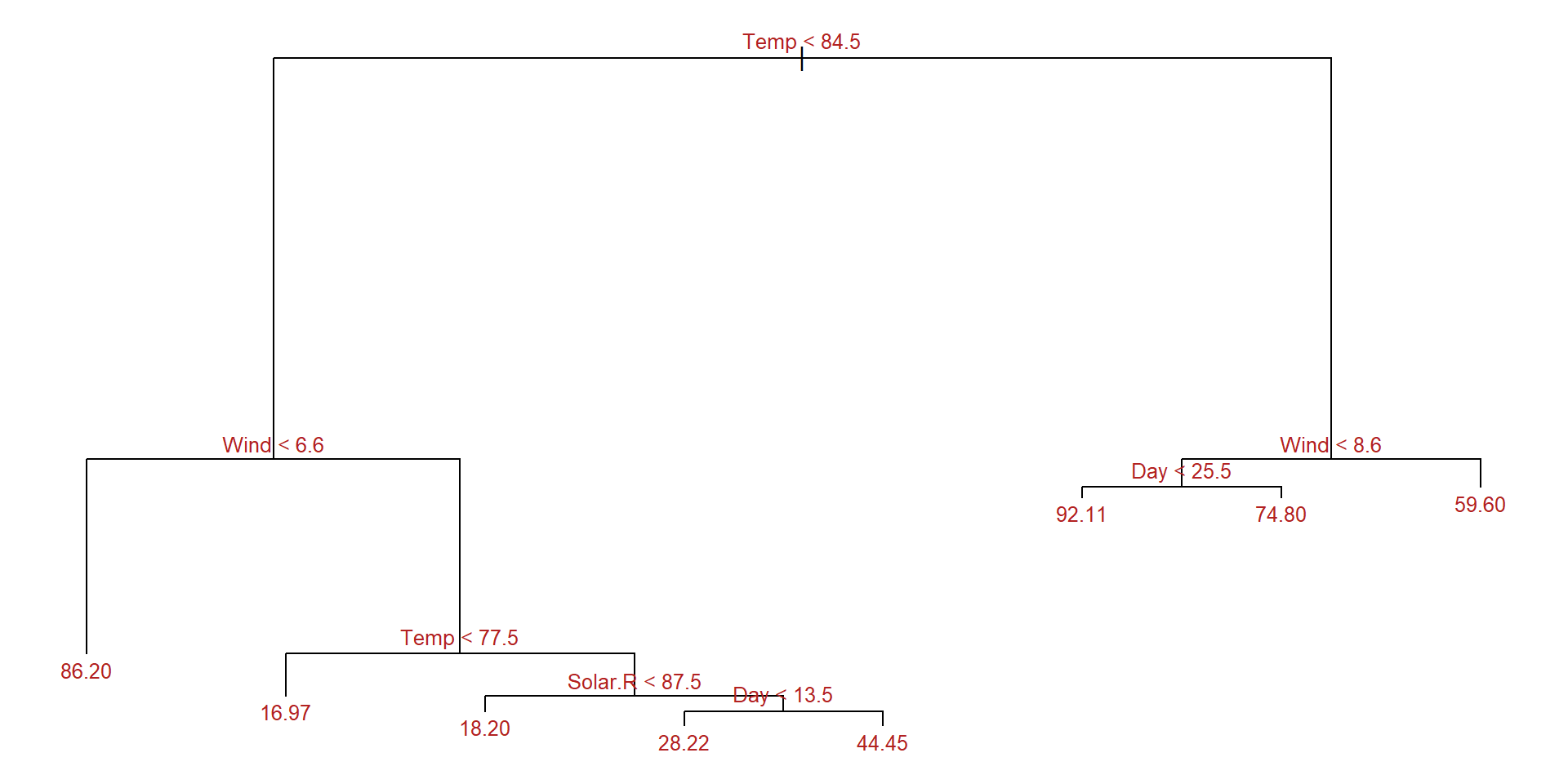

Example: Plot the tree

Error estimation and optimization for regression trees

Prunning the tree (1)

As before, cost-complexity prunning can be applied
We consider a sequence of trees indexed by a nonnegative tuning parameter \(\alpha\).
For each value of \(\alpha\) there corresponds a subtree \(T \subset T_0\) such that:

\[ \sum_{m=1}^{|T|} \sum_{y_i \in R_m} \left(y_i -\hat{y}_{R_m}\right)^2+ \alpha|T|\quad (*) \label{prunning} \]

is as small as possible.

Tuning parameter \(\alpha\)

\(\alpha\) controls a trade-off between the subtree’s complexity and its fit to the training data.
When \(\alpha=0\), then the subtree \(T\) will simply equal \(T_0\).
As \(\alpha\) increases, there is a price to pay for having a tree with many terminal nodes, and so (*) will tend to be minimized for a smaller subtree.
Equation (*1) is reminiscent of the lasso.
\(\alpha\) can be chosen by cross-validation .

Optimizing the tree (\(\alpha\))

Use recursive binary splitting to grow a large tree on the training data, stopping only when each terminal node has fewer than some minimum number of observations.
Apply cost complexity pruning to the large tree in order to obtain a sequence of best subtrees, as a function of \(\alpha\).
Use K-fold cross-validation to choose \(\alpha\). That is, divide the training observations into \(K\) folds. For each \(k=1, \ldots, K\) :
1. Repeat Steps 1 and 2 on all but the \(k\) th fold of the training data.
2. Evaluate the mean squared prediction error on the data in the left-out \(k\) th fold, as a function of \(\alpha\).

Average the results for each value of \(\alpha\). Pick \(\alpha\) to minimize the average error.

Return the subtree from Step 2 that corresponds to the chosen value of \(\alpha\).

Example: Prune the tree

cv_aq <- tree::cv.tree(aq_regresion, K = 5)
optimal_size <-  rev(cv_aq$size)[which.min(rev(cv_aq$dev))]
aq_final_tree <- tree::prune.tree(
                 tree = aq_regresion,
                 best = optimal_size
               )
summary(aq_final_tree)


Regression tree:
tree::tree(formula = Ozone ~ ., data = aq_train, split = "deviance")
Variables actually used in tree construction:
[1] "Temp"    "Wind"    "Solar.R" "Day"
Number of terminal nodes:  8
Residual mean deviance:  285.6 = 21420 / 75
Distribution of residuals:
    Min.  1st Qu.   Median     Mean  3rd Qu.     Max.
-58.2000  -7.9710  -0.4545   0.0000   5.5290  81.8000

In this example pruning does not improve the tree.

Advantages and disadvantages of trees

Trees have many advantages

Trees are very easy to explain to people.
Decision trees may be seen as good mirrors of human decision-making.
Trees can be displayed graphically, and are easily interpreted even by a non-expert.
Trees can easily handle qualitative predictors without the need to create dummy variables.

But they come at a price

Trees generally do not have the same level of predictive accuracy as some of the other regression and classification approaches.
Additionally, trees can be very non-robust: a small change in the data can cause a large change in the final estimated tree.

References and Resources

References

A. Criminisi, J. Shotton and E. Konukoglu (2011) Decision Forests for Classifcation, Regression … Microsoft Research technical report TR-2011-114
Efron, B., Hastie T. (2016) Computer Age Statistical Inference. Cambridge University Press. Web site
Hastie, T., Tibshirani, R., & Friedman, J. (2009). The elements of statistical learning: Data mining, inference, and prediction. Springer.
James, G., Witten, D., Hastie, T., & Tibshirani, R. (2013). An introduction to statistical learning (Vol. 112). Springer. Web site

Complementary references

Breiman, L., Friedman, J., Stone, C. J., & Olshen, R. A. (1984). Classification and regression trees. CRC press.
Brandon M. Greenwell (202) Tree-Based Methods for Statistical Learning in R. 1st Edition. Chapman and Hall/CRC DOI:https://doi.org/10.1201/9781003089032
Genuer R., Poggi, J.M. (2020) Random Forests with R. Springer ed. (UseR!)
